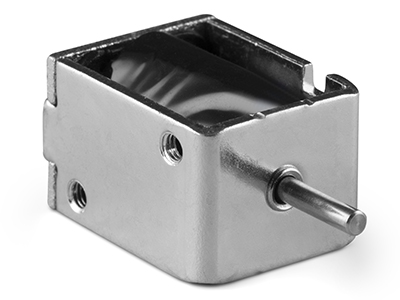

F0626S-12V
Solenoid open frame 12VDC 0.59N 10mm 2.1W
Product name: F0626S-12V | SKU: 20062606
Solenoid open frame type voltage 12VDC force 0.59N stroke 10mm power 2.1W. The force can be significantly increased with limited energized time and with connection to higher supply voltage. The solenoids come with a return spring, and are available in various construction types such as open, cylindrical, self-holding latching bistable and holding magnet designs. All solenoids are available in mechanical pull L or push S designs and can be customized per request. Common customizations are mechanical as well as cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€45.90
≥ 5 pcs
€35.20
≥ 25 pcs
€28.50
≥ 50 pcs
€16.40
≥ 100 pcs

Available on backorder

Power
2.1W
Voltage
12VDC
Profile
Square
Profile height
20mm
Profile width
16mm
Length
26mm
Peak force
0.59N
Type
Push
Weight
59g
SKU
20062606
Some of the possible customizations:
Plunger length
Plunger profile
Connectors
For any inquiries regarding customizations, please contact us at:
Datasheet

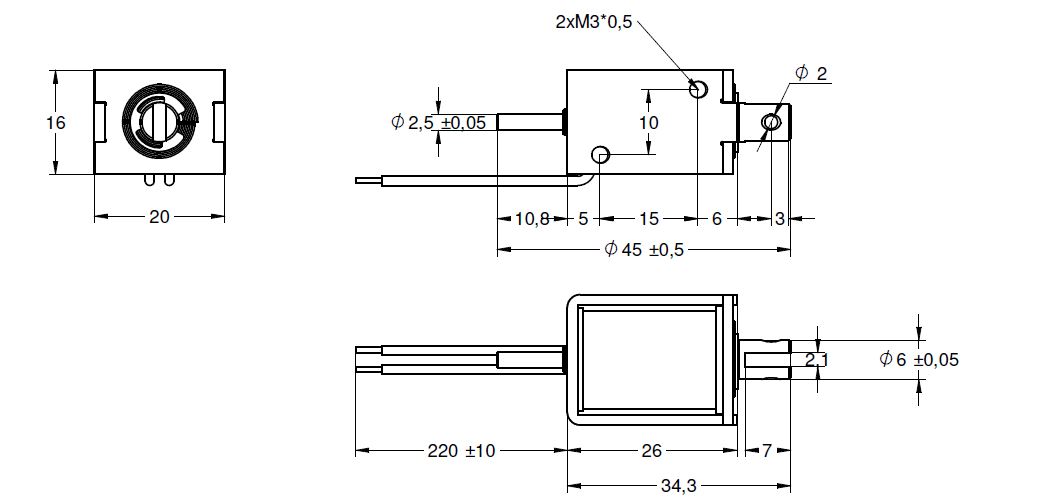

Drawing
Catalog
3D CAD (.stp)
