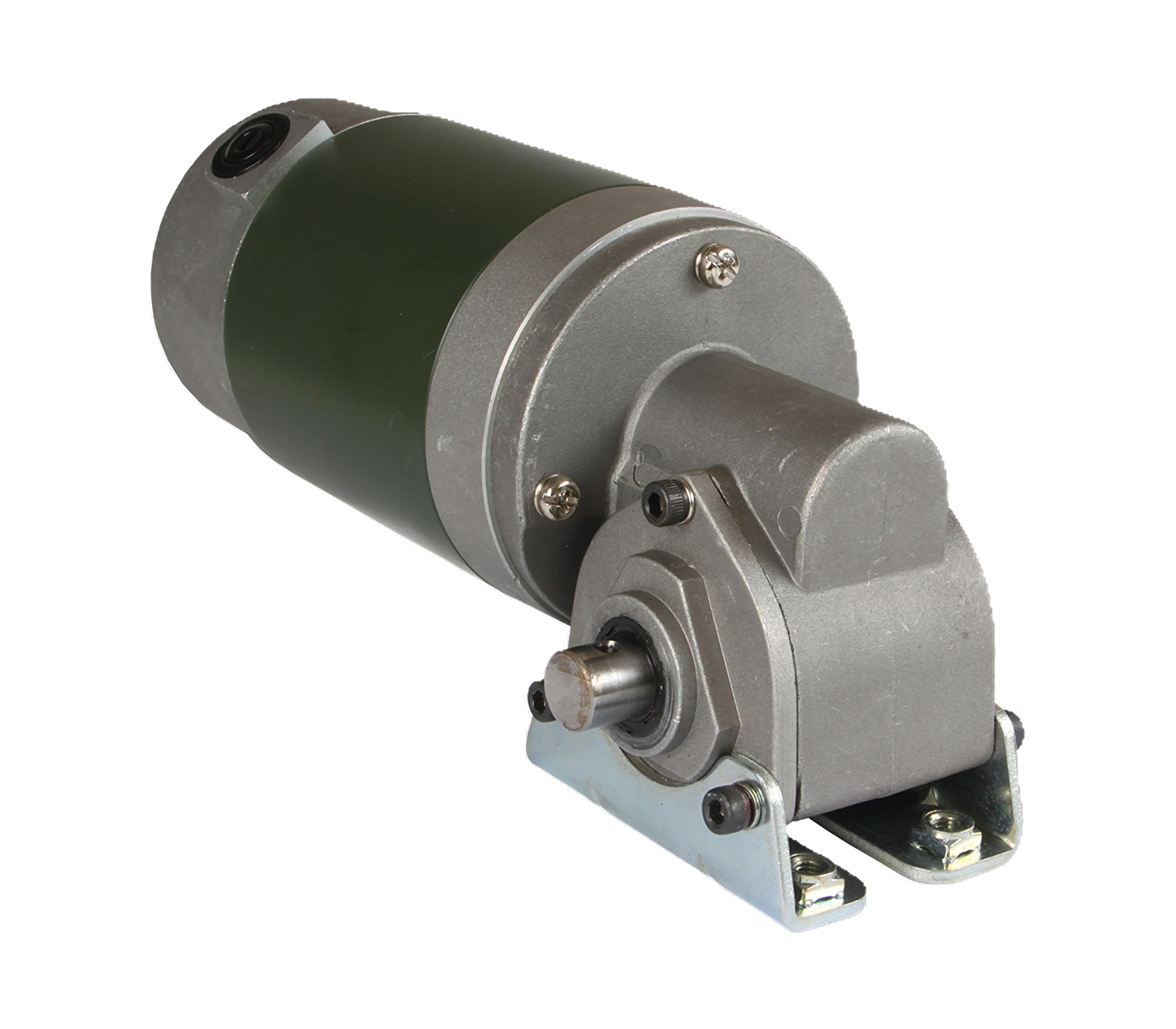

Worm gear motor 12VDC 21A 245rpm 201W.
Product name: WLD89152-12-10 | SKU: 148156047
Brush-commutated worm gear DC motor, direct current motor voltage of 12VDC , current 21A, rated speed 245rpm power 201W. These motors include a range of supply voltages between 12-24V and can, depending on the type, be supplied with or without gear, encoder and brake. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$760.50
≥ 2 pcs
$673.00
≥ 5 pcs
$606.00
≥ 10 pcs
$412.50
≥ 25 pcs

In stock

Power
201W
Voltage
12VDC
Nominal speed
245rpm
Nominal torque
69.39oz-in
Length
8.7in
Nominal current
21A
Diameter
3.5in
Encoder
No
Weight
11.9lb
SKU
148156047
Some of the possible customizations:
Shaft length
Shaft profile
Connectors
Cabling
Gear & pinion material
Operating temperature
Brake & encoder
For any inquiries regarding customizations, please contact us at:
Note

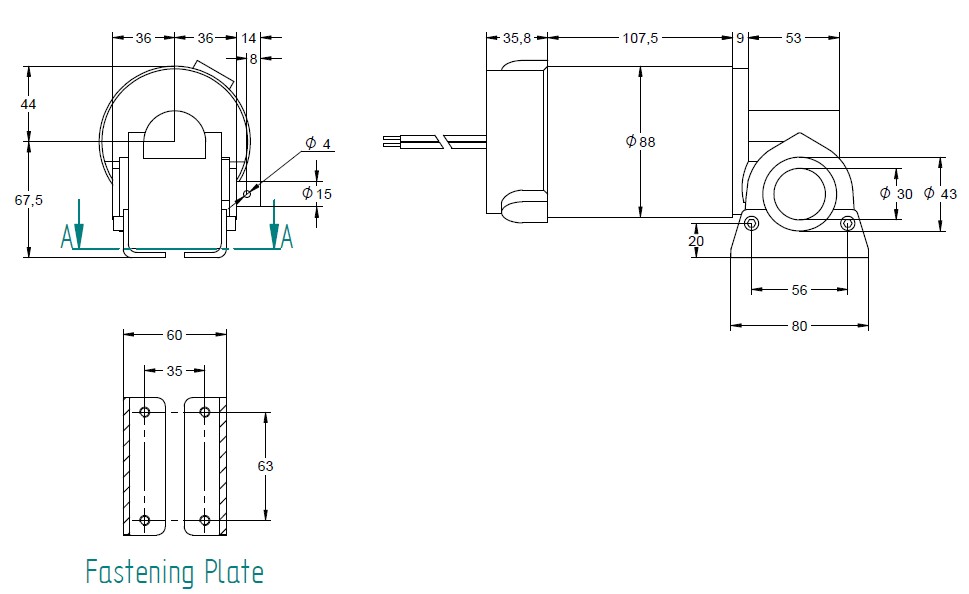

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
