Home
/ AC gear motors
/ S series
/

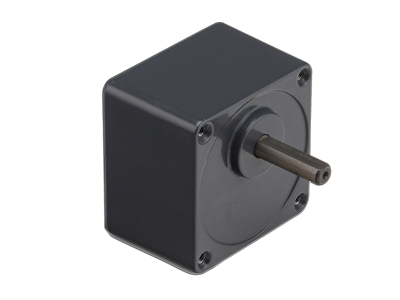

S60A-050
» Product documents
Spur gear box suitable for Transmotec AC motors AI AIR AIS series
Product name: S60A-050 | SKU: 22900015
≥ 1 pcs
$58.00
≥ 5 pcs
$47.00
≥ 25 pcs
$40.00
≥ 50 pcs
$38.00
≥ 100 pcs
In stock
Spin Up
Spin Down
Specification
Customizations
Drawing
Datasheet and downloads
Specification
Size
2.36x2.36in
Ratio
50
Weight
14.11oz
SKU
22900015
Customizations
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
info@transmotec.com
+1 339 209 1680

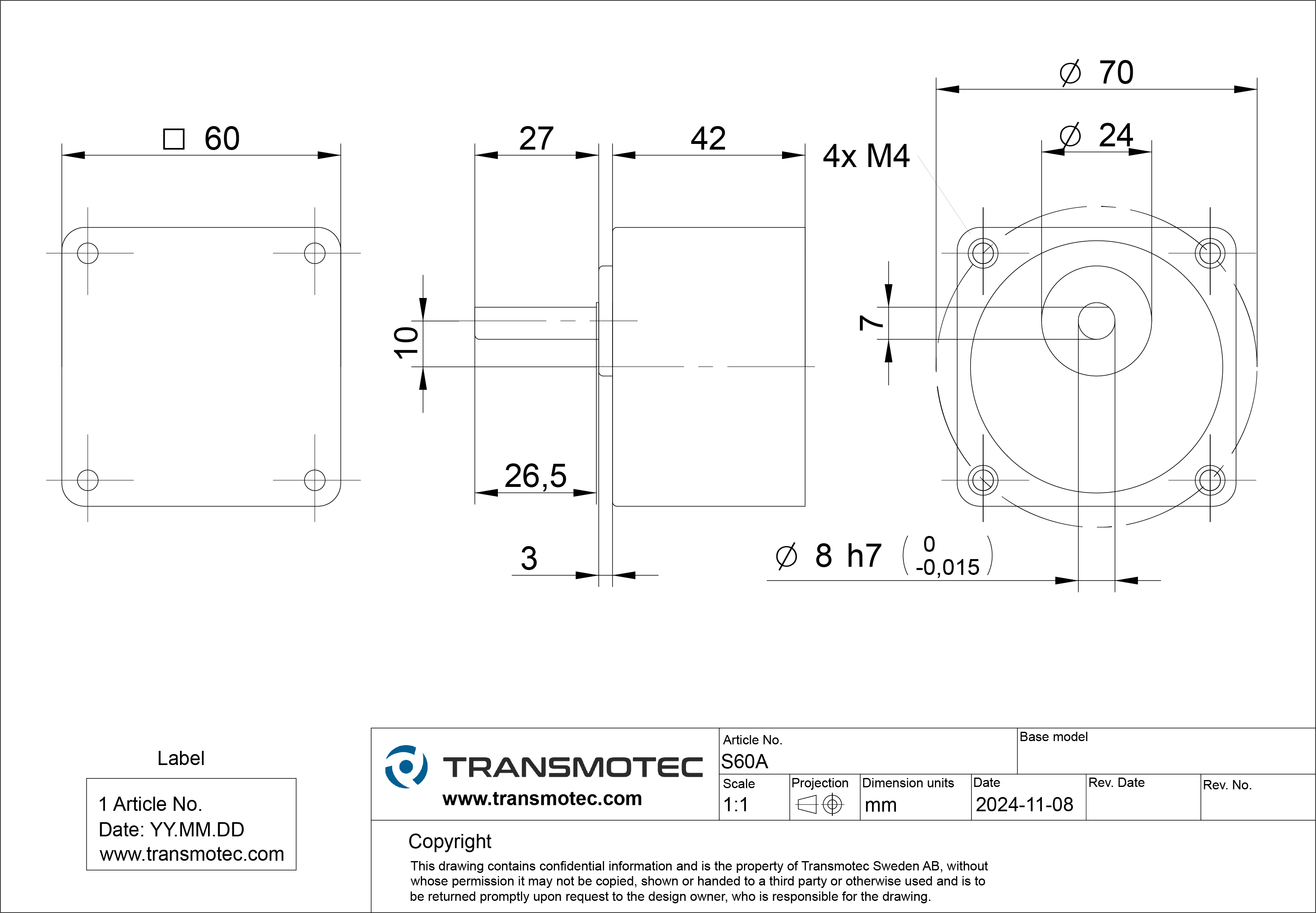

Drawing (mm)
Datasheet and downloads (mm)
Note
Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please
contact us
for more information about the dimensions of these specific details.
