987-5025F-C

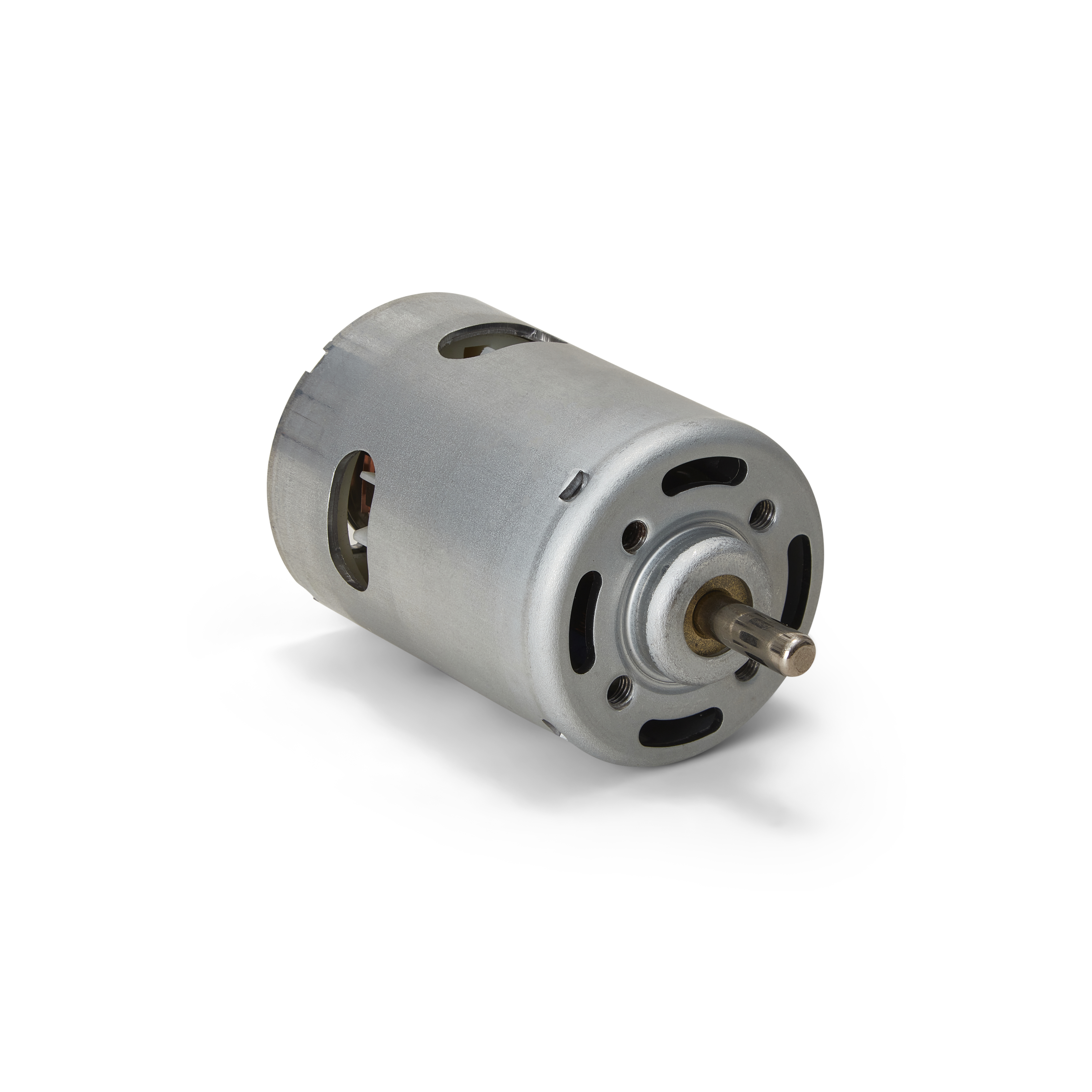

DC-motors 12VDC 20.3A 4000rpm 35W
Product name: 987-5025F-C | SKU: 15987004
Brush-commutated DC motor, direct current motor voltage of 12VDC, current 20.3A, rated speed 4000rpm power 35W. These motors include a range of supply voltages between 2-36V and can, depending on the type, be supplied with or without gear and encoder. Existing gear types are planetary gears and spur gears. EMC filters can be obtained as capacitors or varistors. For some types, carbon brushes or metal brushes can also be selected. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$63.60
≥ 5 pcs
$54.60
≥ 25 pcs
$47.30
≥ 50 pcs
$32.70
≥ 100 pcs

In stock

Power
35W
Voltage
12VDC
Nominal speed
4000rpm
Nominal torque
83.5mNm
Current at maximum load
20.3A
Length
83.5mm
Diameter
52mm
Weight
660g
SKU
15987004
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Datasheet

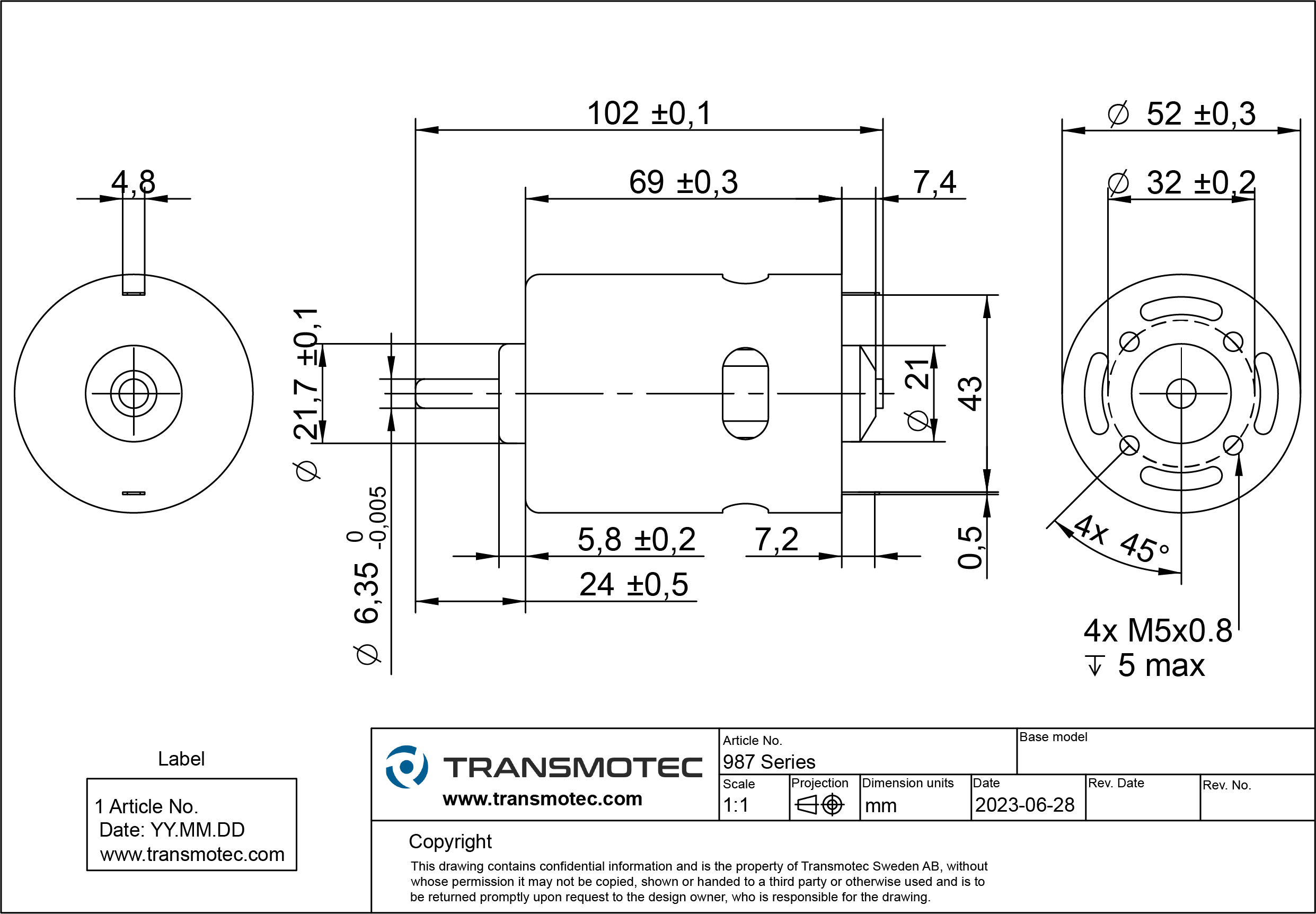

Drawing
Catalog
3D CAD (.stp)
