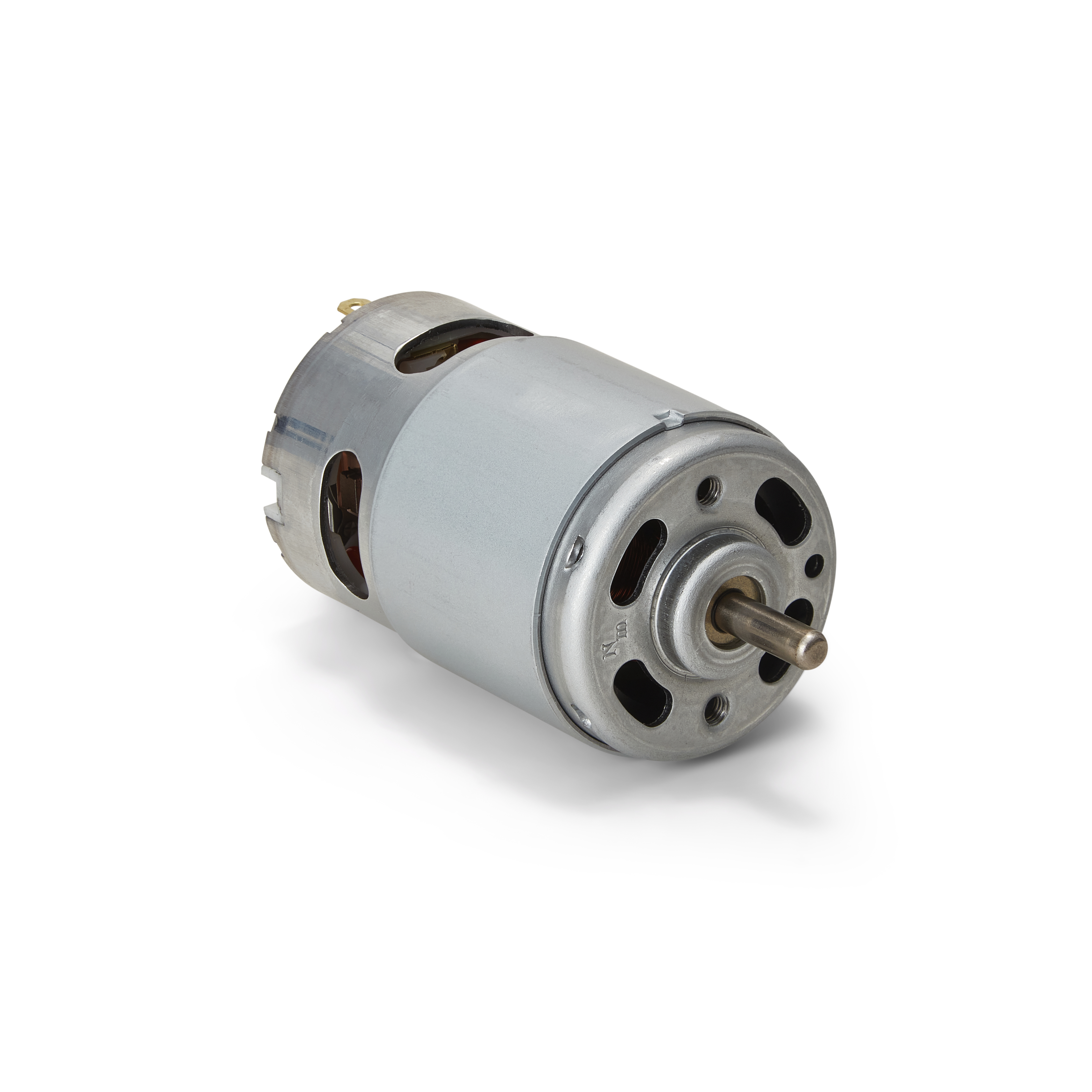

770-8525F-CC
DC-motors 12V 83A 13500rpm 114W
Product name: 770-8525F-CC | SKU: 15770001
Brush-commutated DC motor, direct current motor voltage of 12V, current 83A, rated speed 13500rpm power 114W. These motors include a range of supply voltages between 2-36V and can, depending on the type, be supplied with or without gear and encoder. Existing gear types are planetary gears and spur gears. EMC filters can be obtained as capacitors or varistors. For some types, carbon brushes or metal brushes can also be selected. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€55.20
≥ 5 pcs
€47.10
≥ 25 pcs
€41.50
≥ 50 pcs
€27.40
≥ 100 pcs

In stock

Voltage
12V
Diameter
45mm
Power
114W
Length
80.3mm
Nominal speed
13500rpm
Nominal torque
80.3mNm
Weight
481g
Current at maximum load
83A
SKU
15770001
Some of the possible customizations:
Shaft length
Shaft profile
Operating temperature -40° -- +80°
Encoder
For any inquiries regarding customizations, please contact us at:
Datasheet

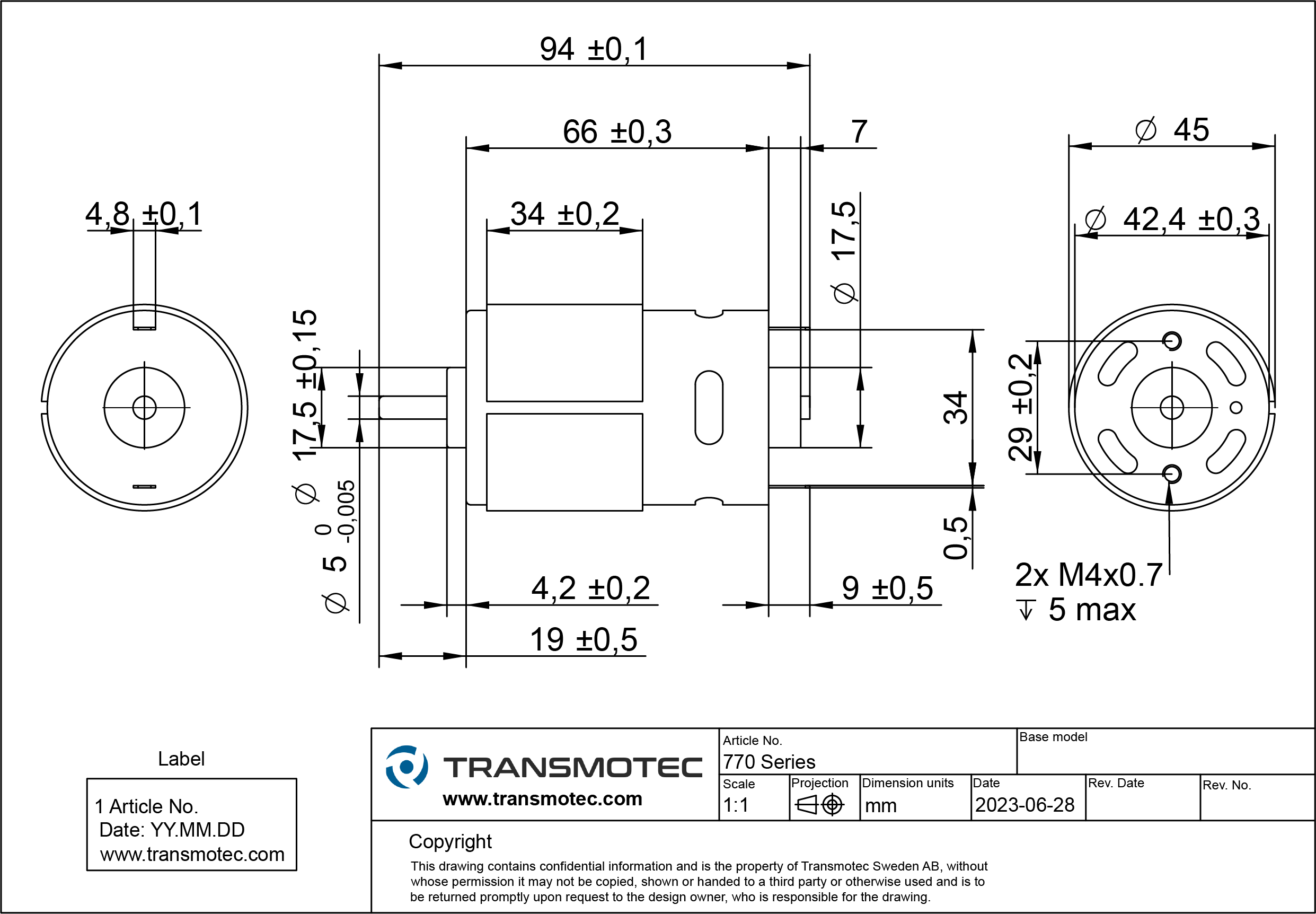

Drawing
Catalog
3D CAD (.stp)
