SHW6088-18-280

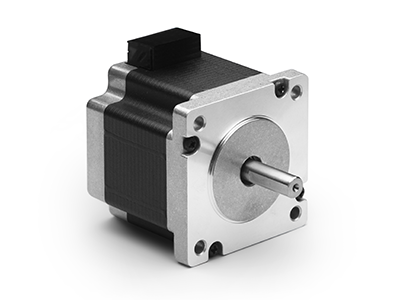

Stepping motor 1.8° 3Nm 2.8A 60x60mm Cable
Product name: SHW6088-18-280 | SKU: 13039161
Stepping motor with specifications step angle 1.8° holding torque 3Nm current 2.8A size 60x60mm connection Cable. Our entire Stepping motor range includes a range of hybrid type Stepping motors with a stepping angle between 0.9 and 1.8 degrees. Holding torque between 0.002-28.00 Nm and flange sizes between 20 - 110 mm. The motors comes with a cable or connector connection. Stepping motor drivers Transmotec DSH are sold separately, as well as power supplies Transmotec LRS. All motors can be customized as needed and also delivered with gear head and encoder. Common adaptations are shaft dimensions, cable connections and cabling. Read more here about customer adaptations and feel free to contact us for further information.
≥ 1 pcs
€105.50
≥ 5 pcs
€151.50
≥ 25 pcs
€63.00
≥ 50 pcs
€48.00
≥ 100 pcs

Available on backorder

Nominal current
2.8A
Size
60x60mm
Type
Cable
Step degrees
1.8°
Resistance
1.5ohm
Inductance
6.8mH
Holding torque
3Nm
Length
88mm
SKU
13039161
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Datasheet

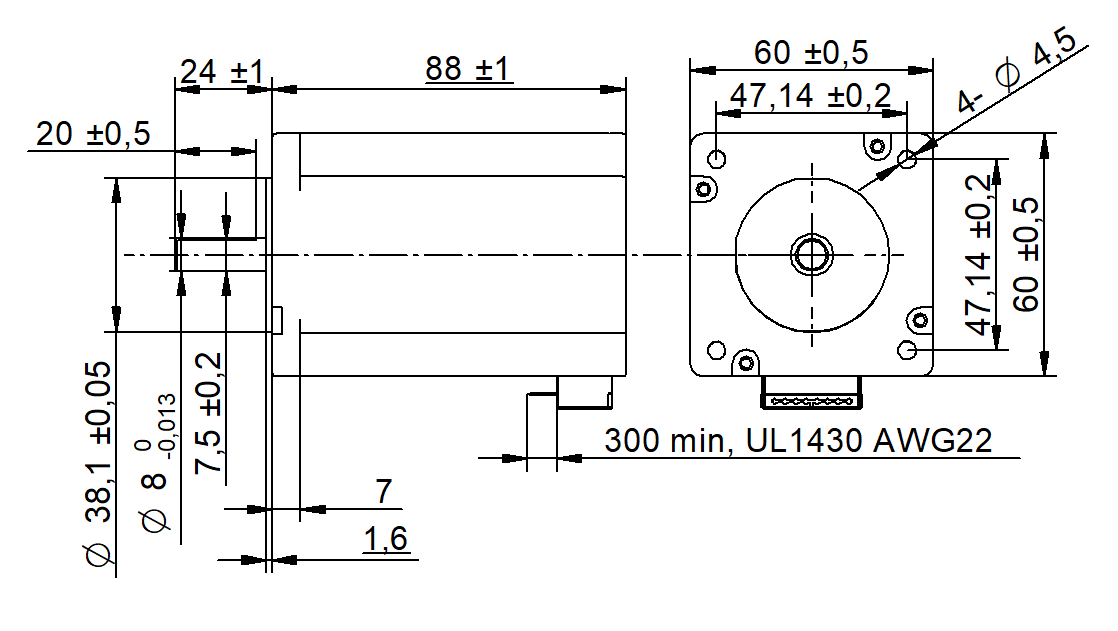

Drawing
Catalog
3D CAD (.stp)
