SHW3944-09-028
Stepping motor 0.9° 0.3Nm 0.28A 39x39mm Cable
Product name: SHW3944-09-028 | SKU: 13039113
Stepping motor with specifications step angle 0.9° holding torque 0.3Nm current 0.28A size 39x39mm connection Cable. Our entire Stepping motor range includes a range of hybrid type Stepping motors with a stepping angle between 0.9 and 1.8 degrees. Holding torque between 0.002-28.00 Nm and flange sizes between 20 - 110 mm. The motors comes with a cable or connector connection. Stepping motor drivers Transmotec DSH are sold separately, as well as power supplies Transmotec LRS. All motors can be customized as needed and also delivered with gear head and encoder. Common adaptations are shaft dimensions, cable connections and cabling. Read more here about customer adaptations and feel free to contact us for further information.
≥ 1 pcs
€56.00
≥ 5 pcs
€81.00
≥ 25 pcs
€38.00
≥ 50 pcs
€34.50
≥ 100 pcs

In stock

Nominal current
0.28A
Size
39x39mm
Type
Cable
Step degrees
0.9°
Resistance
60ohm
Inductance
145mH
Holding torque
0.3Nm
Length
44.5mm
SKU
13039113
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Datasheet

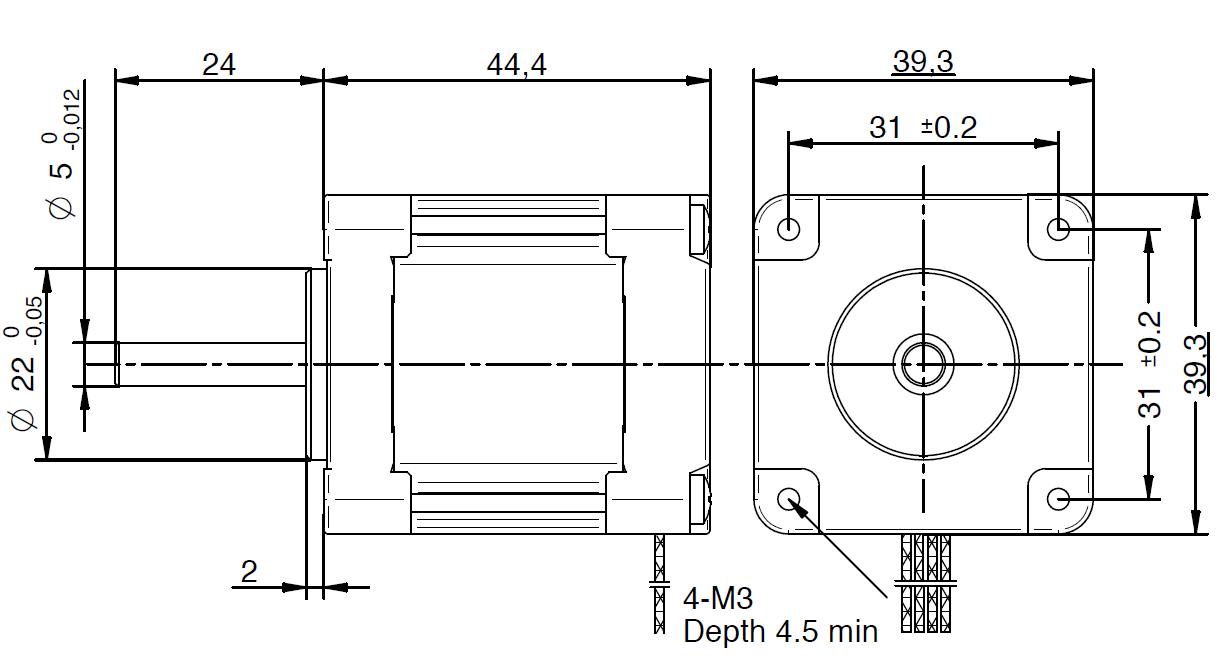

Drawing
Catalog
3D CAD (.stp)
