SHC5741-18-280
Stepping motor 1.8° 0.6Nm 2.8A 57x57mm Connector
Product name: SHC5741-18-280 | SKU: 13039129
Stepping motor with specifications step angle 1.8° holding torque 0.6Nm current 2.8A size 57x57mm connection Connector. Our entire Stepping motor range includes a range of hybrid type Stepping motors with a stepping angle between 0.9 and 1.8 degrees. Holding torque between 0.002-28.00 Nm and flange sizes between 20 - 110 mm. The motors comes with a cable or connector connection. Stepping motor drivers Transmotec DSH are sold separately, as well as power supplies Transmotec LRS. All motors can be customized as needed and also delivered with gear head and encoder. Common adaptations are shaft dimensions, cable connections and cabling. Read more here about customer adaptations and feel free to contact us for further information.
≥ 1 pcs
€42.50
≥ 5 pcs
€61.50
≥ 25 pcs
€25.00
≥ 50 pcs
€19.00
≥ 100 pcs

Available on backorder

Nominal current
2.8A
Size
57x57mm
Type
Connector
Step degrees
1.8°
Resistance
0.78ohm
Inductance
1.8mH
Holding torque
0.6Nm
Length
40.5mm
SKU
13039129
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Datasheet

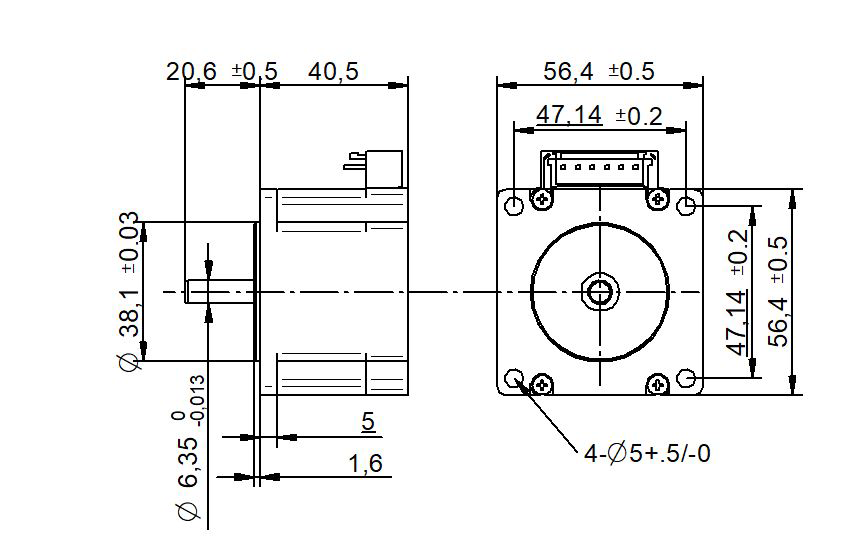

Drawing
Catalog
3D CAD (.stp)
