SHC4240-18-168
Stepping motor 1.8° 0.36Nm 1.68A 42x42mm Connector
Product name: SHC4240-18-168 | SKU: 13039127
Stepping motor with specifications step angle 1.8° holding torque 0.36Nm current 1.68A size 42x42mm connection Connector. Our entire Stepping motor range includes a range of hybrid type Stepping motors with a stepping angle between 0.9 and 1.8 degrees. Holding torque between 0.002-28.00 Nm and flange sizes between 20 - 110 mm. The motors comes with a cable or connector connection. Stepping motor drivers Transmotec DSH are sold separately, as well as power supplies Transmotec LRS. All motors can be customized as needed and also delivered with gear head and encoder. Common adaptations are shaft dimensions, cable connections and cabling. Read more here about customer adaptations and feel free to contact us for further information.
≥ 1 pcs
€33.00
≥ 5 pcs
€47.50
≥ 25 pcs
€19.00
≥ 50 pcs
€14.50
≥ 100 pcs

In stock

Nominal current
1.68A
Size
42x42mm
Type
Connector
Step degrees
1.8°
Resistance
1.65ohm
Inductance
3.2mH
Holding torque
0.36Nm
Length
39.5mm
SKU
13039127
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Datasheet

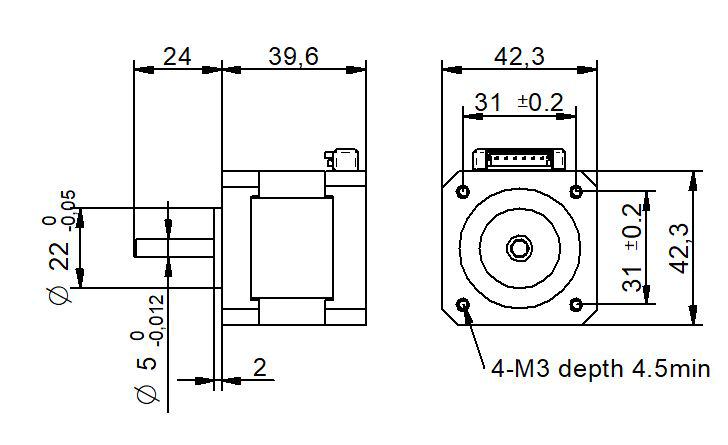

Drawing
Catalog
3D CAD (.stp)
