DMA-12-10-A-610-LT-POT-IP65
Linear actuator 12VDC 1500N 18A
Product name: DMA-12-10-A-610-LT-POT-IP65 | SKU: 11014084
Linear actuator for direct current with voltage 12VDC force 1500N current 18A. These actuators include a range with supply voltages between 12-24V and can, depending on the type, be supplied with potentiometer and adjustable limit switches. Accessories for assembly are sold separately. All actuators can be customized per request. Common adjustments are stroke length, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€981.00
≥ 2 pcs
€897.00
≥ 5 pcs
€796.00
≥ 10 pcs
€719.50
≥ 25 pcs

In stock

Voltage
12VDC
Nominal current
18A
Feedback
Potentiometer
Maximum Force
1500N
Speed at maximum load
28mm/s
Stroke length
610mm
Weight
7.3kg
SKU
11014084
Some of the possible customizations:
Stroke length (min. 50mm – max. 1000mm)
Limit switch output signals
Control box & hand controller
Dimension tolerances
Vertical or horizontal mounting holes
Front connector type/dimensions
Ambient temperature
Voltage (36VDC, 48VDC)
Connectors
Cabling
Single channel hall effect sensor
For any inquiries regarding customizations, please contact us at:
Note

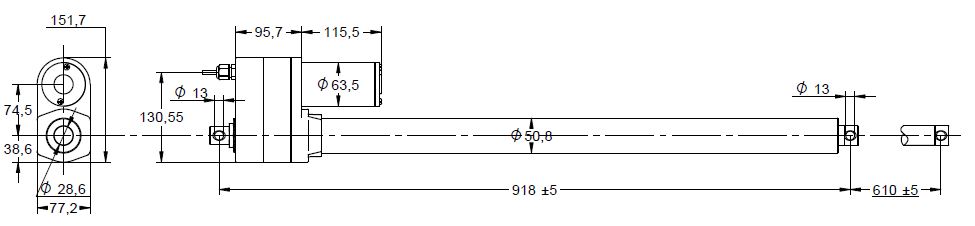

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
