DLB-12-10-A-150-IP65

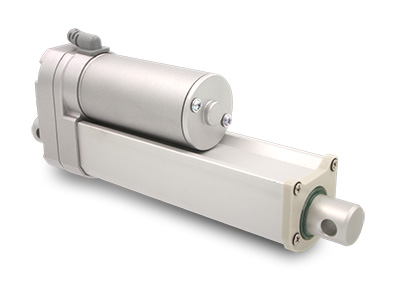

Linear actuator 12V 500N 4.4A
Product name: DLB-12-10-A-150-IP65 | SKU: 16112002
Linear actuator for direct current with voltage 12V force 500N current 4.4A. The actuators include a range with supply voltages between 12-24V and can, depending on the type, be supplied with encoder, potentiometer and adjustable limit switches. Accessories for mounting are sold separately. All actuators can be customized as needed. Common adjustments are stroke length, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$479.50
≥ 5 pcs
$333.30
≥ 25 pcs
$253.10
≥ 50 pcs
$229.00
≥ 100 pcs

In stock

Voltage
12V
Maximum Force
500N
Feedback
None
Speed at maximum load
25mm/s
Stroke length
150mm
Current at maximum load
4.4A
Weight
1.15kg
SKU
16112002
Some of the possible customizations:
Stroke length (min. 40mm – max. 500mm)
Limit switch output signals
Control box & hand controller
Dimension tolerances
Vertical or horizontal mounting holes
Front connector dimensions
Mounting bracket
Voltage (36VDC, 48VDC)
Connectors
Cabling
For any inquiries regarding customizations, please contact us at:
Datasheet

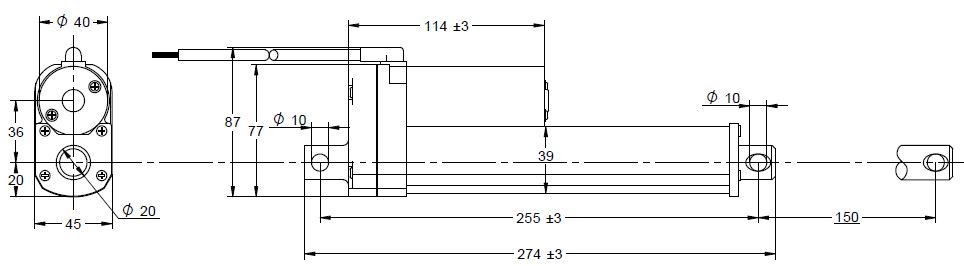

Drawing
Catalog
3D CAD (.stp)
