Linear actuator 12VDC 250N 2.4A
Product name: DLA-12-10-A-100-POT-IP65 | SKU: 16012112
Linear actuator for direct current with voltage 12VDC force 250N current 2.4A. The actuators include a range with supply voltages between 12-24V and can, depending on the type, be supplied with encoder, potentiometer and adjustable limit switches. Accessories for mounting are sold separately. All actuators can be customized as needed. Common adjustments are stroke length, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€308.00
≥ 5 pcs
€258.50
≥ 25 pcs
€233.50
≥ 50 pcs
€159.50
≥ 100 pcs

In stock

Voltage
12VDC
Nominal current
2.4A
Feedback
Potentiometer
Maximum Force
250N
Speed at maximum load
23.5mm/s
Stroke length
100mm
Weight
925g
SKU
16012112
Some of the possible customizations:
Stroke length (min. 25.4mm – max. 500mm)
Limit switch output signals
Control box & hand controller
Noise level (min. = 55dB)
Dimension tolerances
Vertical or horizontal mounting holes
Front connector material/type/dimensions
Motor pinion material
Voltage (36VDC, 48VDC)
Connectors
Cabling
For any inquiries regarding customizations, please contact us at:
Note

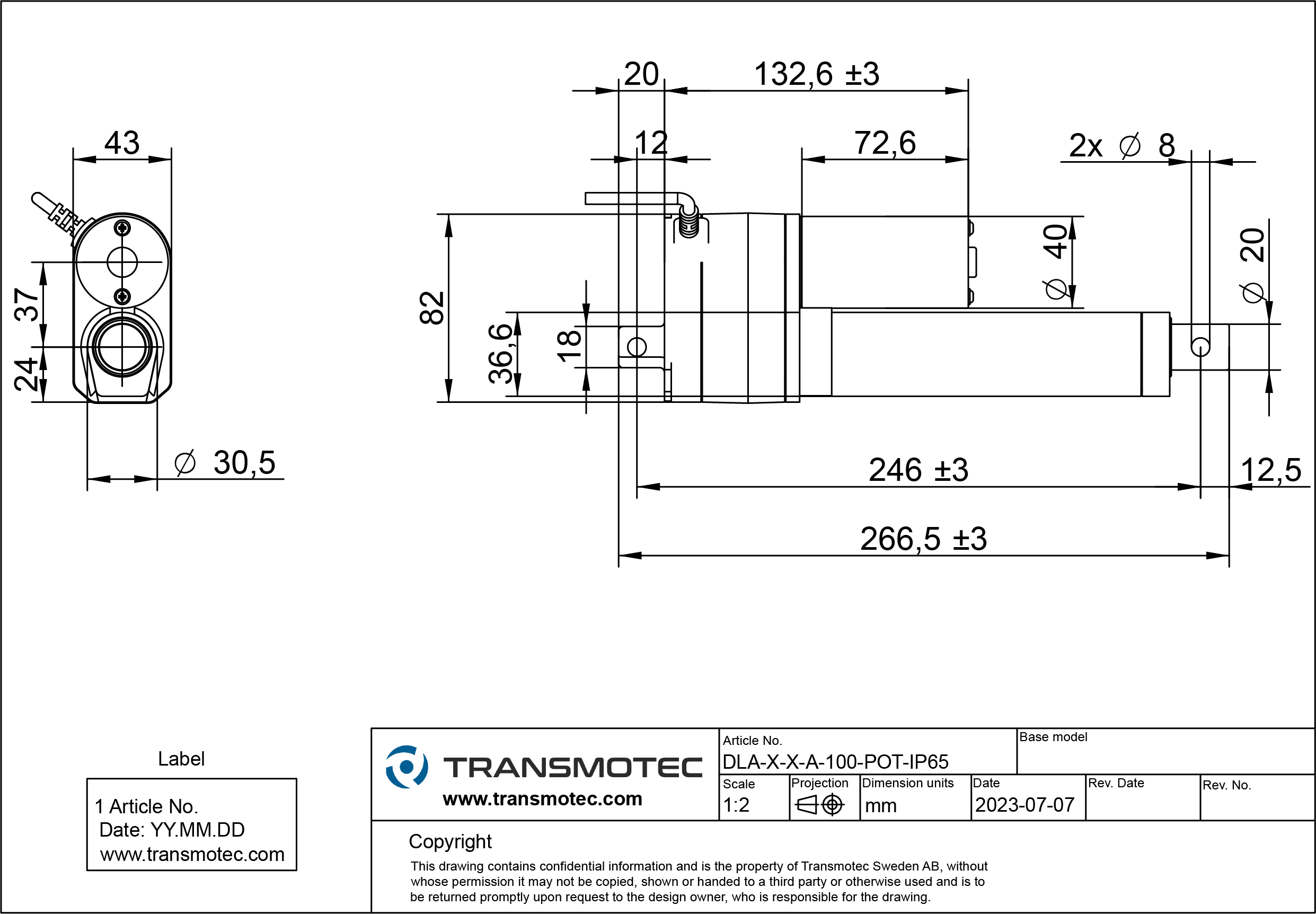

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
