DLA-12-10-A-100-IP65
Linear actuator 12VDC 250N 2.4A
Product name: DLA-12-10-A-100-IP65 | SKU: 16012012
Linear actuator for direct current with voltage 12VDC force 250N current 2.4A. The actuators include a range with supply voltages between 12-24V and can, depending on the type, be supplied with encoder, potentiometer and adjustable limit switches. Accessories for mounting are sold separately. All actuators can be customized as needed. Common adjustments are stroke length, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$227.10
≥ 5 pcs
$191.30
≥ 25 pcs
$167.10
≥ 50 pcs
$110.10
≥ 100 pcs

In stock

Voltage
12VDC
Current at maximum load
2.4A
Feedback
No
Maximum Force
250N
Speed at maximum load
23.5mm/s
Stroke length
100mm
Weight
925g
SKU
16012012
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Datasheet

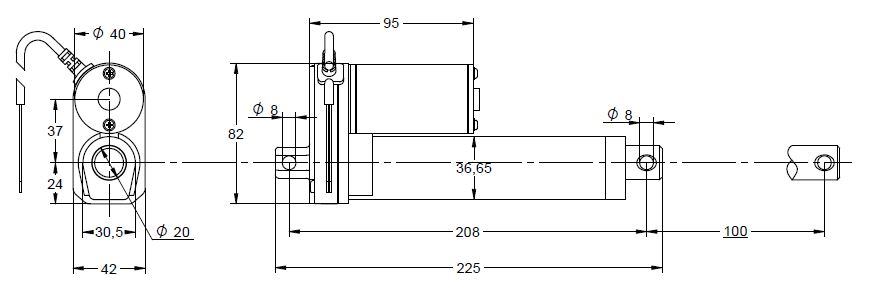

Drawing
Catalog
3D CAD (.stp)
