Home / Linear actuators  / Control boxes / Control boxes

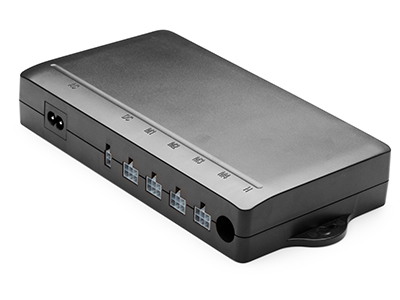

DDLA-4
» Product documents
Control boxes
Product name: DDLA-4 | SKU: 16024307
Controll box for linear actuator DLA and DLB with specifications type Asynchronous number of actuators 4 supply voltage 120-230VAC suitable for control HDL-DDLA-4
≥ 1 pcs
€131.50
≥ 5 pcs
€106.50
≥ 25 pcs
€90.00
≥ 50 pcs
€73.50
≥ 100 pcs

In stock

Specification
Voltage
120-230VAC
Output voltage
24VDC
Output current
3.5A
Number of actuators
4
Type
Asynchronous
Suitable for control
HDL-DDLA-4
Suitable for actuator
DLA-DLB | 24 VDC
Weight
810g
SKU
16024307
Customizations
Some of the possible customizations:
Cable lengths and connectors
For any inquiries regarding customizations, please contact us at:
Note

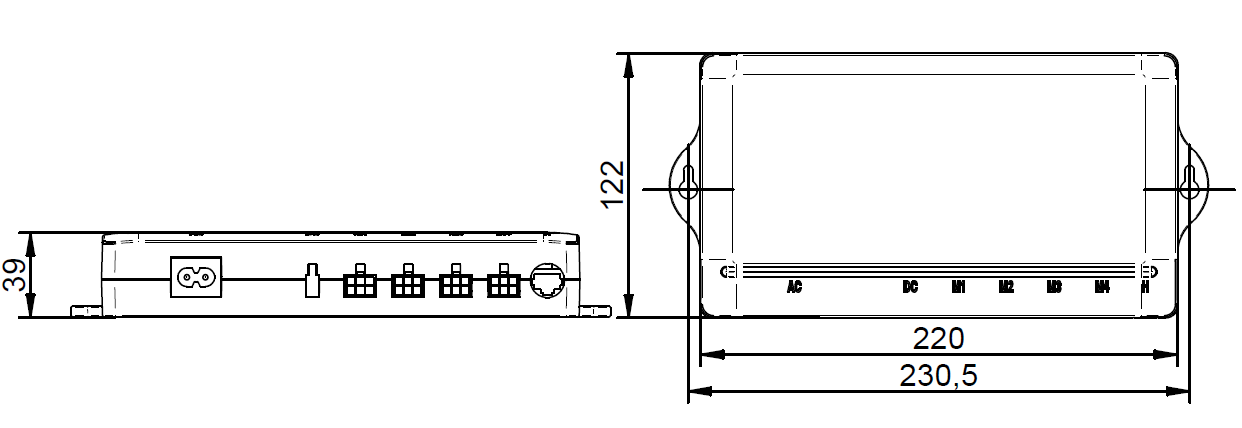

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
