Home / Linear actuators  / Mounting brackets / Linear actuator mounting bracket 674.4lbf 0.31in
ALA-12
» Product documents

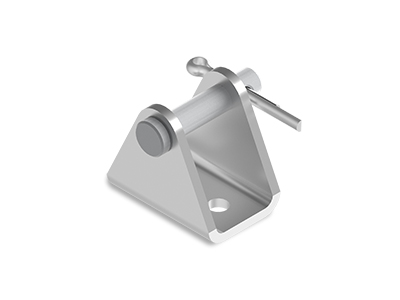

Linear actuator mounting bracket 674.4lbf 0.31in
Product name: ALA-12 | SKU: 16099996
Linear actuator mounting bracket force 674.4lbf diam. 0.31in All brackets can be customized per request. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$25.00
≥ 2 pcs
$25.00
≥ 5 pcs
$20.00
≥ 10 pcs
$20.00
≥ 25 pcs

In stock

Specification
Max. Load
674.4lbf
Bolt diameter
0.31in
Weight
2.65oz
SKU
16099996
Customizations
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Note

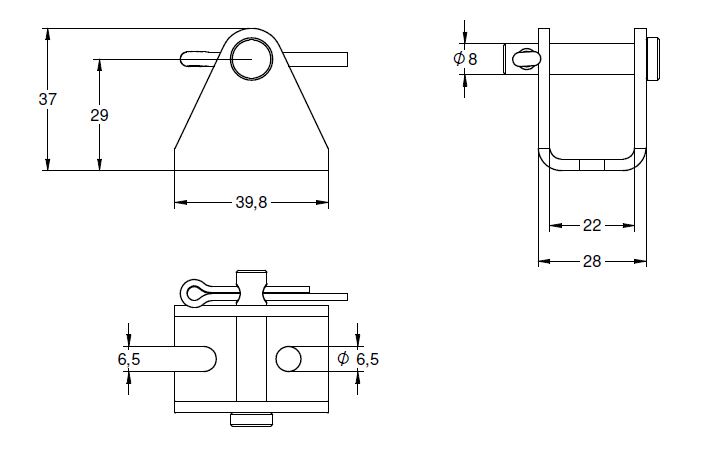

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
