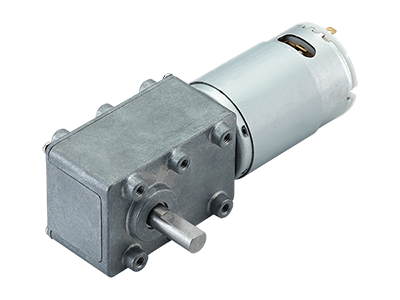

Worm gear motor 12VDC 1.6A 5rpm 1W.
Product name: WRD4057-12-1050 | SKU: 10481344
Brush-commutated worm gear DC motor, direct current motor voltage of 12VDC , current 1.6A, rated speed 5rpm power 1W. These motors include a range of supply voltages between 12-24V and can, depending on the type, be supplied with or without gear, encoder and brake. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€214.50
≥ 5 pcs
€172.50
≥ 25 pcs
€139.00
≥ 50 pcs
€115.50
≥ 100 pcs

In stock

Power
1W
Voltage
12VDC
Nominal speed
5rpm
Nominal torque
2Nm
Length
117mm
Nominal current
1.6A
Diameter
36mm
Weight
440g
SKU
10481344
Some of the possible customizations:
Shaft length
Shaft profile
Connectors
Cabling
Gear & pinion material
Operating temperature
Brake & encoder
For any inquiries regarding customizations, please contact us at:
Note
Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
