WHD123224-12-40

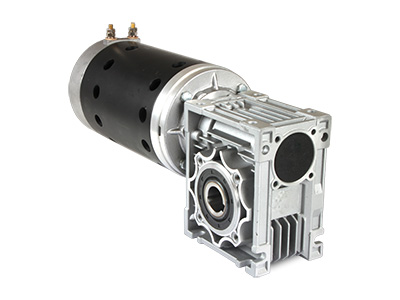

Worm gear motor 12V 262A 50rpm 421W
Product name: WHD123224-12-40 | SKU: 141188013
Brush-commutated worm gear DC motor, direct current motor voltage of 12V, current 262A, rated speed 50rpm power 421W. These motors include a range of supply voltages between 12-24V and can, depending on the type, be supplied with or without gear, encoder and brake. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$1761.60
≥ 2 pcs
$1562.30
≥ 5 pcs
$1408.40
≥ 10 pcs
$893.90
≥ 25 pcs

Available on backorder

Voltage
12V
Diameter
123.5mm
Power
421W
Length
344mm
Nominal speed
50rpm
Nominal torque
41Nm
Current at maximum load
262A
Weight
13.13kg
Encoder
No
SKU
141188013
Some of the possible customizations:
Shaft length
Shaft profile
Connectors
Cabling
Gear & pinion material
Operating temperature
Brake & encoder
For any inquiries regarding customizations, please contact us at:
Datasheet

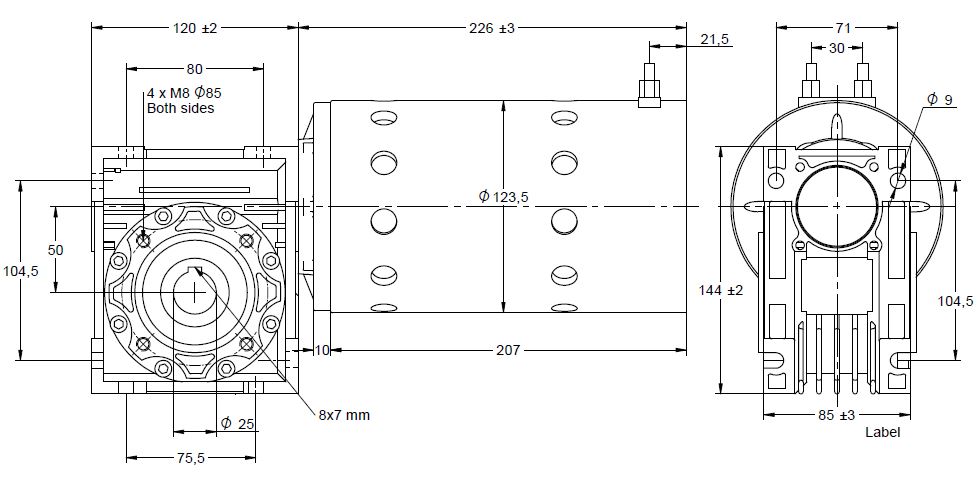

Drawing
Catalog
3D CAD (.stp)
