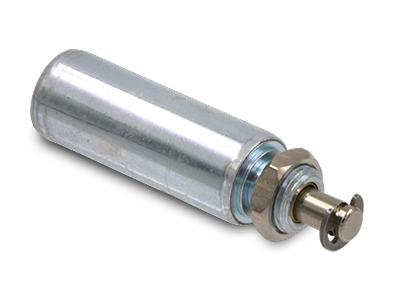

T1130L-12V
Solenoid tubular type 12VDC 2.75N 4W
Product name: T1130L-12V | SKU: 20113002
Solenoid tubular type voltage 12VDC force 2.75N stroke 0mm power 4W. The force can be significantly increased with limited energized time and with connection to higher supply voltage. The solenoids come with a return spring, and are available in various construction types such as open, cylindrical, self-holding latching bistable and holding magnet designs. All solenoids are available in mechanical pull L or push S designs and can be customized per request. Common customizations are mechanical as well as cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$54.90
≥ 5 pcs
$41.30
≥ 25 pcs
$32.90
≥ 50 pcs
$21.00
≥ 100 pcs

In stock

Power
4W
Voltage
12VDC
Length
30.5mm
Diameter
11mm
Peak force
2.75N
Type
Pull
Weight
17g
SKU
20113002
Profile
Circular
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Datasheet

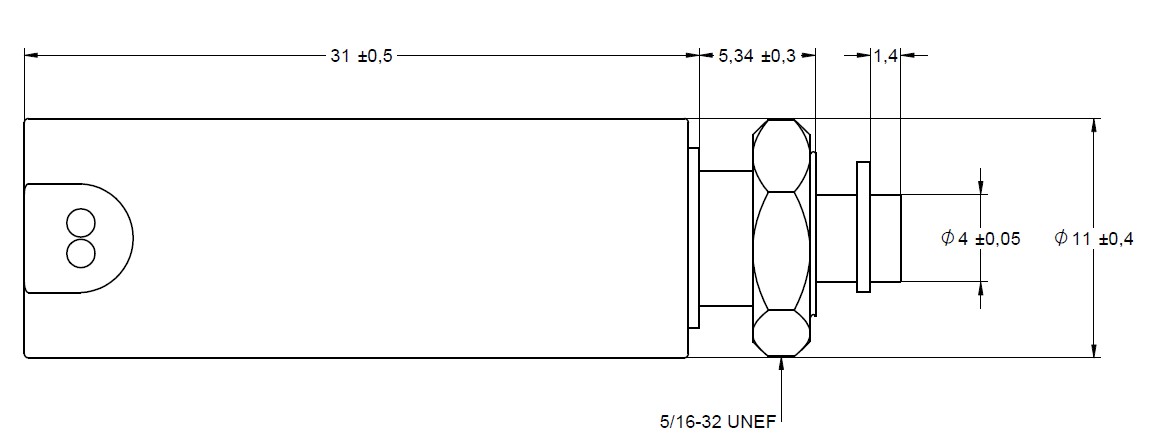

Drawing
Catalog
3D CAD (.stp)
