SHW11099-18-550
Stepping motor 1.8° 11.2Nm 5.5A 110x110mm Cable
Product name: SHW11099-18-550 | SKU: 13039167
Stepping motor with specifications step angle 1.8° holding torque 11.2Nm current 5.5A size 110x110mm connection Cable. Our entire Stepping motor range includes a range of hybrid type Stepping motors with a stepping angle between 0.9 and 1.8 degrees. Holding torque between 0.002-28.00 Nm and flange sizes between 20 - 110 mm. The motors comes with a cable or connector connection. Stepping motor drivers Transmotec DSH are sold separately, as well as power supplies Transmotec LRS. All motors can be customized as needed and also delivered with gear head and encoder. Common adaptations are shaft dimensions, cable connections and cabling. Read more here about customer adaptations and feel free to contact us for further information.
≥ 1 pcs
€201.00
≥ 5 pcs
€290.00
≥ 25 pcs
€159.00
≥ 50 pcs
€150.50
≥ 100 pcs

Available on backorder

Nominal current
5.5A
Size
110x110mm
Type
Cable
Step degrees
1.8°
Resistance
0.7ohm
Inductance
9.8mH
Holding torque
11.2Nm
Length
99mm
SKU
13039167
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Datasheet

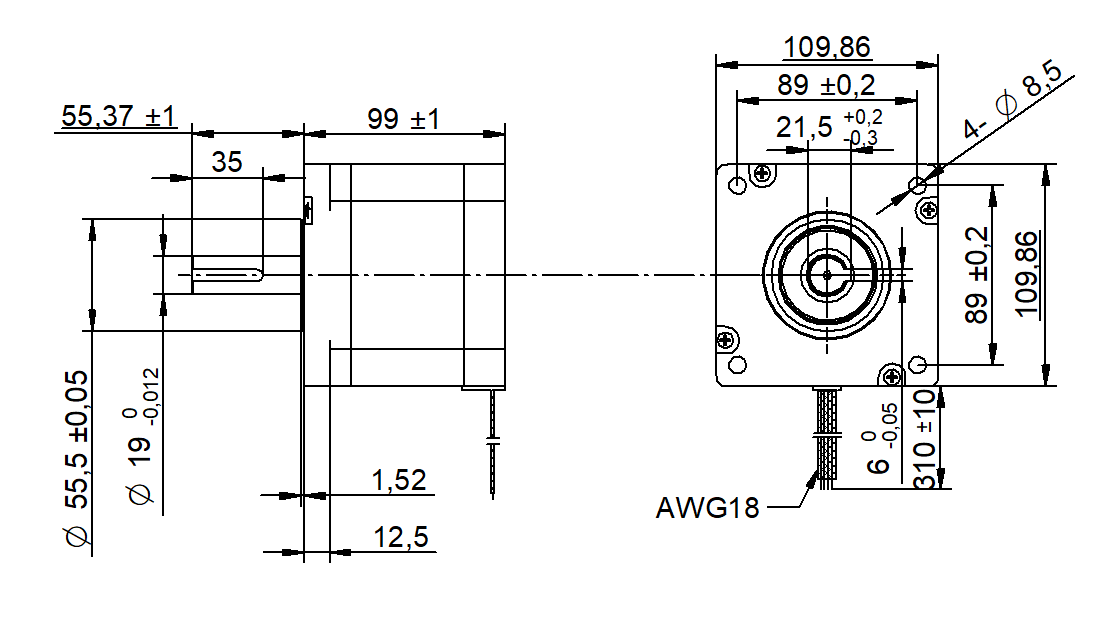

Drawing
Catalog
3D CAD (.stp)
