PD1230-3-16-FE
Planetary DC motor 3V 1.5A 610rpm 0.59W.
Product name: PD1230-3-16-FE | SKU: 10341202
Brush-commutated planetary gear DC motor, direct current motor voltage of 3V, current 1.5A, rated speed 610rpm power 0.59W. These motors include a range of supply voltages between 2-36V and can, depending on the type, be supplied with or without gear and encoder. Existing gear types are planetary gears and spur gears. EMC filters can be obtained as capacitors or varistors. For some types, carbon brushes or metal brushes can also be selected. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$227.30
≥ 5 pcs
$144.10
≥ 25 pcs
$75.60
≥ 50 pcs
$66.50
≥ 100 pcs

In stock

Voltage
3V
Diameter
12mm
Power
0.59W
Length
16.1mm
Nominal speed
610rpm
Nominal torque
6.4mNm
Current at maximum load
1.5A
Weight
29.7g
Encoder
Yes
SKU
10341202
Some of the possible customizations:
Shaft length
Shaft profile
Connectors
Cabling
Gear & pinion material
Operating temperature
For any inquiries regarding customizations, please contact us at:
Datasheet

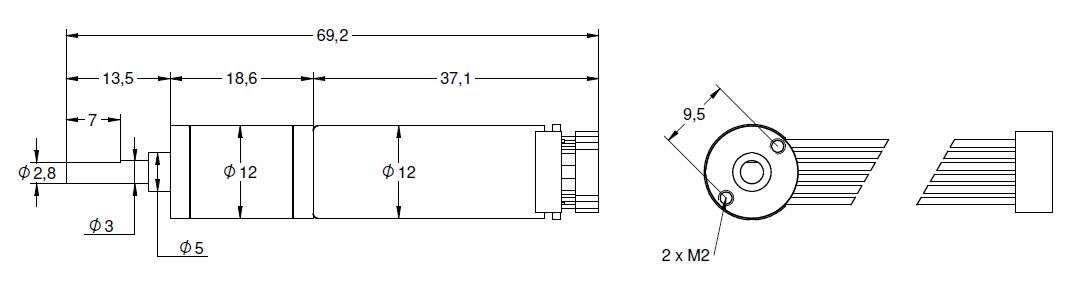

Drawing
Catalog
3D CAD (.stp)
