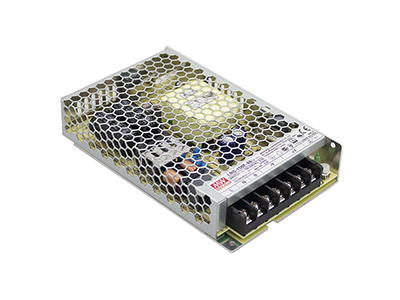

LRS-150F-36
Switched Power Supply 36VDC 4.3A 154.8W
Product name: LRS-150F-36 | SKU: 30015006
Switched power supply from Mean Well with wide input range. Output voltage 36VDC and power 154.8W. With its in-built potentiometer, the output voltage can be fine-tuned for your application. The power supplies meet many international safety regulations such as EN60335-1 and EN61558-1 / -2-16. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€28.09
≥ 5 pcs
€25.93
≥ 25 pcs
€24.13
≥ 50 pcs
€22.67
≥ 100 pcs

In stock

Power
154.8W
Voltage
36VDC
Nominal current
4.3A
Profile height
30mm
Profile width
97mm
Length
159mm
Weight
480g
SKU
30015006
Some of the possible customizations:
Output voltage
Mounting brackets
Temperature range
Connection type/layout
For any inquiries regarding customizations, please contact us at:
Datasheet

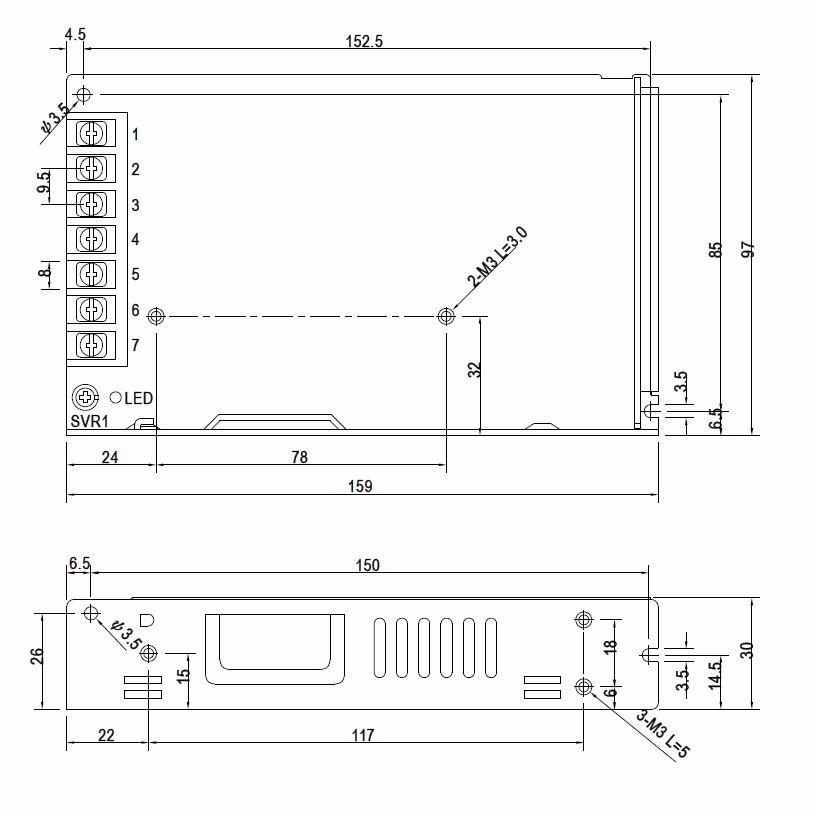

Drawing
Catalog
3D CAD (.stp)
