Name: LRS-150F-12
Brand: Transmotec
SKU: 30015003
Price: 41.50 usd
Availability: InStock

Home / Power Supplies / Power Supplies /

LRS-150F-12

» Product documents

» Accessories

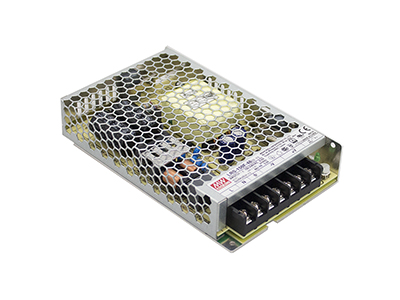

Switched Power Supply 12VDC 12.5A 150W

Product name: LRS-150F-12 | SKU: 30015003

Switched power supply from Mean Well with wide input range. Output voltage 12VDC and power 150W. With its in-built potentiometer, the output voltage can be fine-tuned for your application. The power supplies meet many international safety regulations such as EN60335-1 and EN61558-1 / -2-16. Read more here about customizations and please contact us for further information.

≥ 1 pcs

$41.50

≥ 5 pcs

$38.00

≥ 25 pcs

$35.00

≥ 50 pcs

$33.00

≥ 100 pcs

In stock

Spin Up Spin Down

Specification Customizations Drawing Datasheet and downloads Accessories

Specification

Power

150W

Voltage

12VDC

Length

6.26in

Profile height

1.18in

Profile width

3.82in

Nominal current

12.5A

Weight

16.93oz

SKU

30015003

Customizations

Some of the possible customizations:

Output voltage

Mounting brackets

Temperature range

Connection type/layout

For any inquiries regarding customizations, please contact us at:

info@transmotec.com
+1 339 209 1680

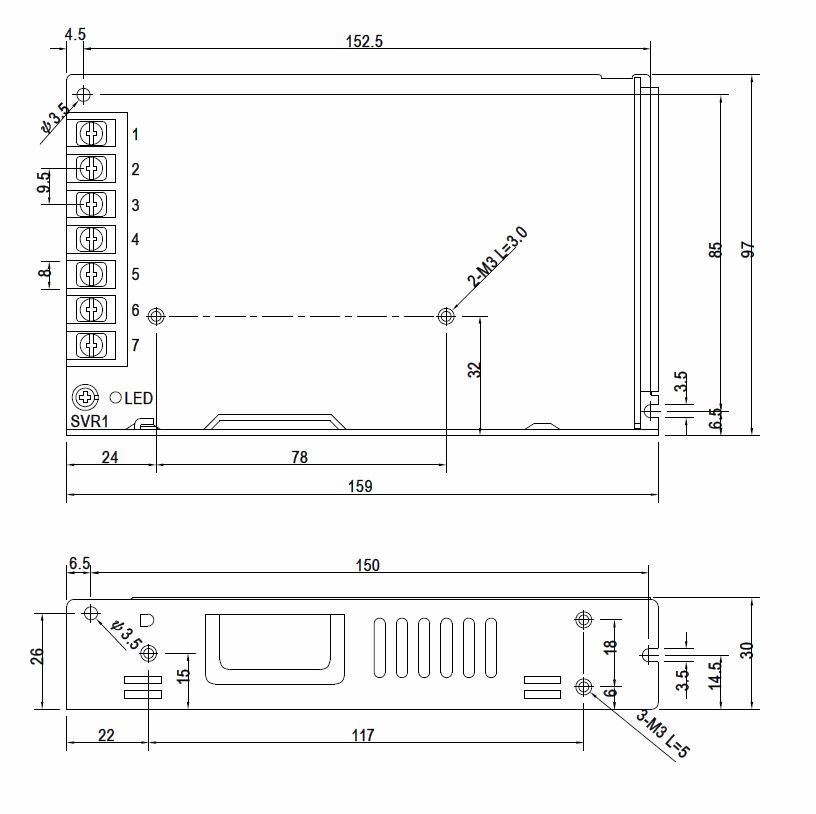

Drawing (mm)

Datasheet and downloads (mm)

Note
Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
