LRS-100-36
Switched Power Supply 36VDC 2.8A 100.8W
Product name: LRS-100-36 | SKU: 30010006
Switched power supply from Mean Well with wide input range. Output voltage 36VDC and power 100.8W. With its in-built potentiometer, the output voltage can be fine-tuned for your application. The power supplies meet many international safety regulations such as EN60335-1 and EN61558-1 / -2-16. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€20.31
≥ 5 pcs
€18.75
≥ 25 pcs
€17.45
≥ 50 pcs
€16.47
≥ 100 pcs

In stock

Power
100.8W
Voltage
36VDC
Nominal current
2.8A
Profile height
30mm
Profile width
97mm
Length
129mm
Weight
340g
SKU
30010006
Some of the possible customizations:
Output voltage
Mounting brackets
Temperature range
Connection type/layout
For any inquiries regarding customizations, please contact us at:
Datasheet

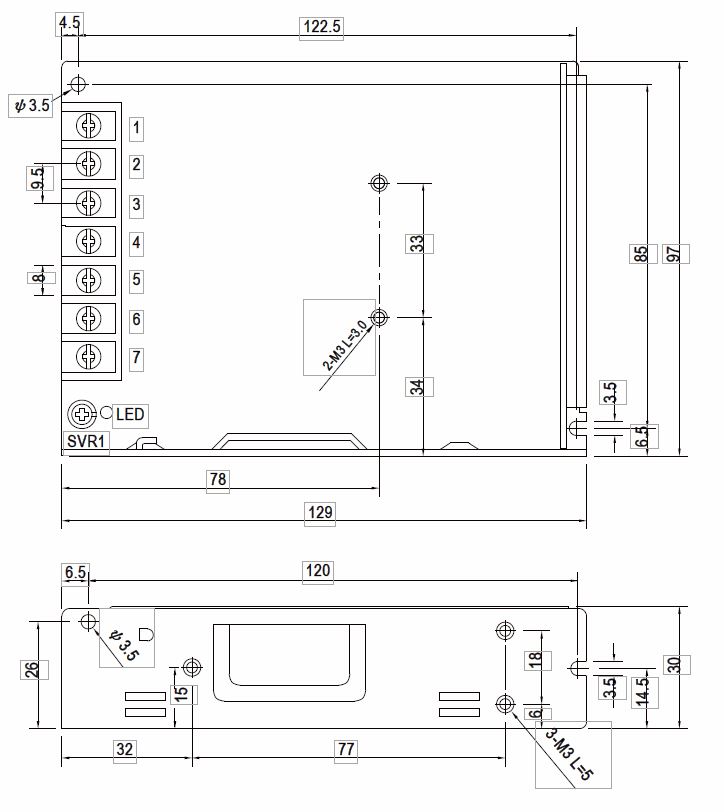

Drawing
Catalog
3D CAD (.stp)
