LRS-100-24
Switched Power Supply 24VDC 4.5A 108W
Product name: LRS-100-24 | SKU: 30010005
Switched power supply from Mean Well with wide input range. Output voltage 24VDC and power 108W. With its in-built potentiometer, the output voltage can be fine-tuned for your application. The power supplies meet many international safety regulations such as EN60335-1 and EN61558-1 / -2-16. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€19.25
≥ 5 pcs
€17.77
≥ 25 pcs
€16.63
≥ 50 pcs
€15.49
≥ 100 pcs

In stock

Power
108W
Voltage
24VDC
Nominal current
4.5A
Profile height
30mm
Profile width
97mm
Length
129mm
Weight
340g
SKU
30010005
Some of the possible customizations:
Output voltage
Mounting brackets
Temperature range
Connection type/layout
For any inquiries regarding customizations, please contact us at:
Datasheet

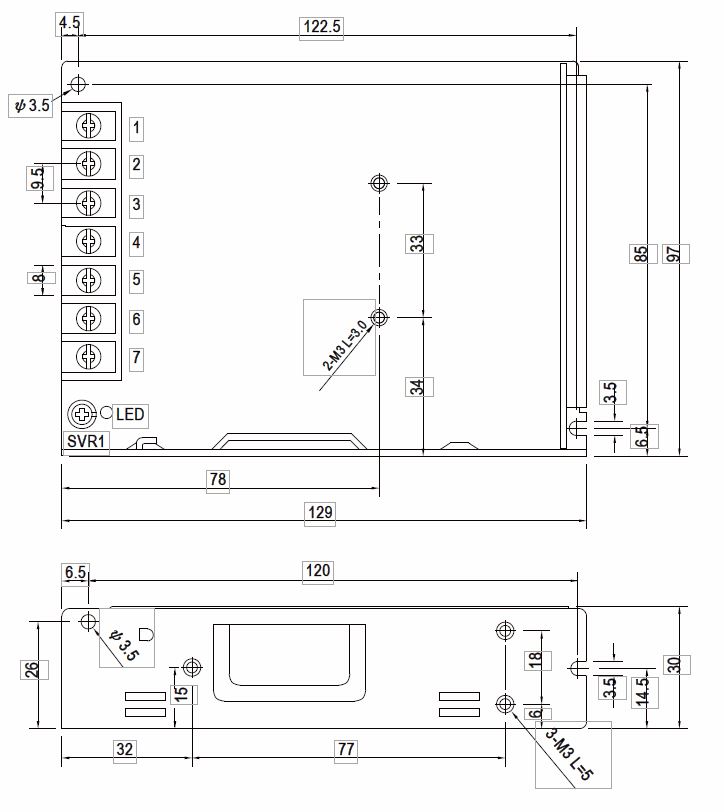

Drawing
Catalog
3D CAD (.stp)
