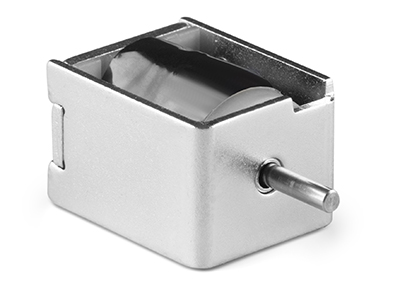

K0520S-06V
Latching solenoid 6VDC 0.74N 1.5W
Product name: K0520S-06V | SKU: 20052012
Latching solenoid , self holding, bistable magnet voltage 6VDC force 0.74N stroke power 1.5W The force can be significantly increased with limited energized time and with connection to a higher supply voltage. A latching function is achieved through a built-in permanent magnet, whose magnetism is neutralized by reversed current direction. The solenoids come with a return spring and are available in various construction types such as open, cylindrical, self-holding and holding magnet design. All solenoids are available in pull L or push S designs and can be customized as needed. Common adaptations are mechanical as well as cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$50.00
≥ 5 pcs
$40.00
≥ 25 pcs
$33.30
≥ 50 pcs
$28.60
≥ 100 pcs

Available on backorder

Power
1.5W
Voltage
6VDC
Profile height
16mm
Profile width
13mm
Length
20mm
Peak force
0.74N
Type
Push
Weight
20g
SKU
20052012
Profile
Square
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Datasheet

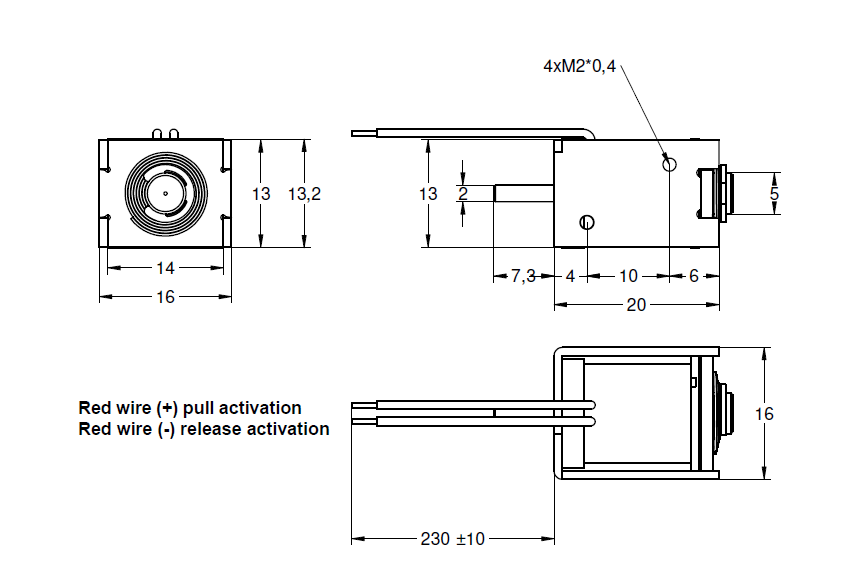

Drawing
Catalog
3D CAD (.stp)
