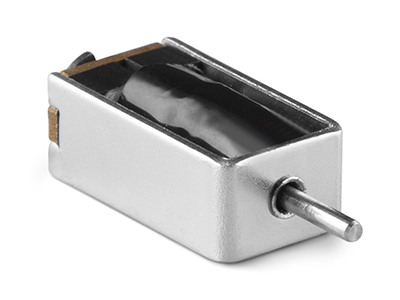

Latching solenoid 12VDC 0.98N 1W

Product name: K0420S-12V | SKU: 20042013

Latching solenoid , self holding, bistable magnet voltage 12VDC force 0.98N stroke power 1W The force can be significantly increased with limited energized time and with connection to a higher supply voltage. A latching function is achieved through a built-in permanent magnet, whose magnetism is neutralized by reversed current direction. The solenoids come with a return spring and are available in various construction types such as open, cylindrical, self-holding and holding magnet design. All solenoids are available in pull L or push S designs and can be customized as needed. Common adaptations are mechanical as well as cable connections and cabling. Read more here about customizations and please contact us for further information.
