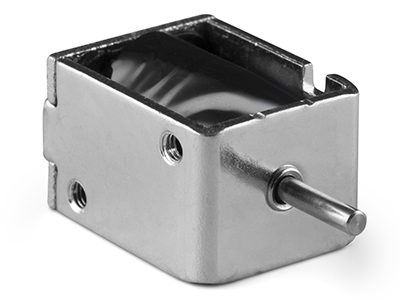

Solenoid open frame 6VDC 0.13lbf 0.39in 2.1W
Product name: F0626S-06V | SKU: 20062605
Solenoid open frame type voltage 6VDC force 0.13lbf stroke 0.39in power 2.1W. The force can be significantly increased with limited energized time and with connection to higher supply voltage. The solenoids come with a return spring, and are available in various construction types such as open, cylindrical, self-holding latching bistable and holding magnet designs. All solenoids are available in mechanical pull L or push S designs and can be customized per request. Common customizations are mechanical as well as cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$51.10
≥ 5 pcs
$39.00
≥ 25 pcs
$31.60
≥ 50 pcs
$18.20
≥ 100 pcs

Available on backorder

Power
2.1W
Voltage
6VDC
Profile
Square
Length
1.02in
Profile height
0.79in
Profile width
0.63in
Peak force
0.13lbf
Type
Push
Weight
2.08oz
SKU
20062605
Some of the possible customizations:
Plunger length
Plunger profile
Connectors
For any inquiries regarding customizations, please contact us at:
