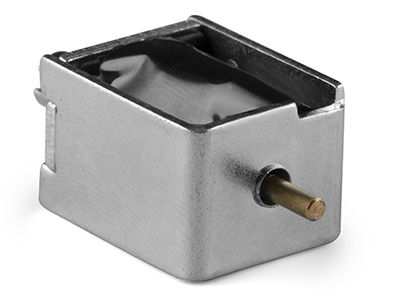

F0520S-12V
Solenoid open frame 12V 0.59N 10mm 1.6W
Product name: F0520S-12V | SKU: 20052006
Solenoid open frame type voltage 12V force 0.59N stroke 10mm power 1.6W. The force can be significantly increased with limited energized time and with connection to higher supply voltage. The solenoids come with a return spring, and are available in various construction types such as open, cylindrical, self-holding latching bistable and holding magnet designs. All solenoids are available in mechanical pull L or push S designs and can be customized per request. Common customizations are mechanical as well as cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€39.70
≥ 5 pcs
€31.70
≥ 25 pcs
€25.00
≥ 50 pcs
€14.40
≥ 100 pcs

In stock

Voltage
12V
Power
1.6W
Profile
Square
Length
20mm
Profile height
16mm
Profile width
13mm
Weight
25g
Peak force
0.59N
Type
Push
SKU
20052006
Some of the possible customizations:
Plunger length
Plunger profile
Connectors
For any inquiries regarding customizations, please contact us at:
Datasheet

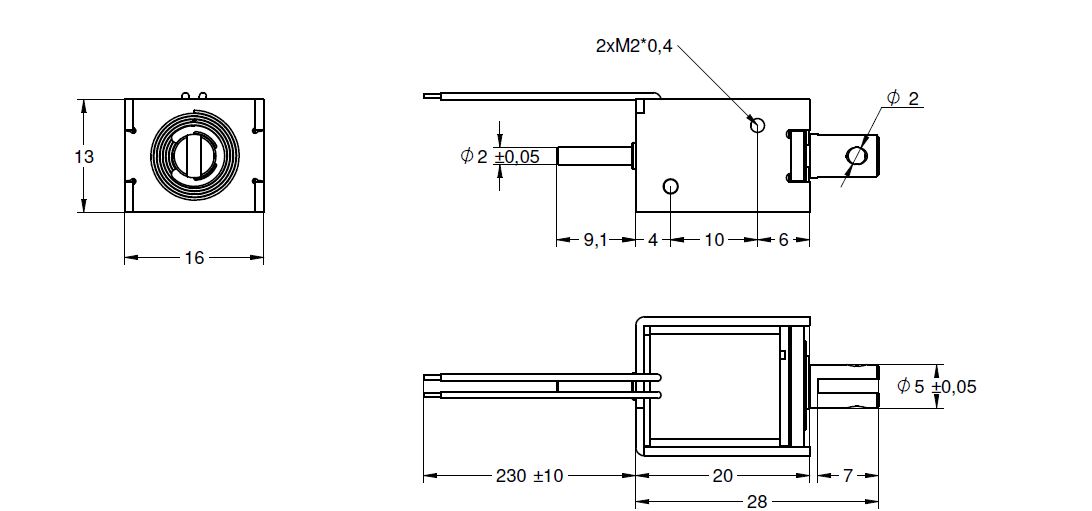

Drawing
Catalog
3D CAD (.stp)
