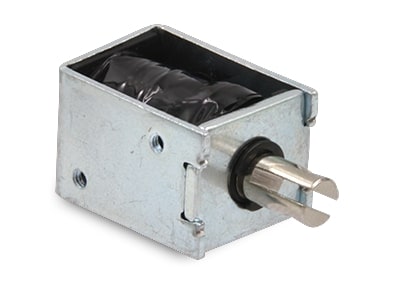

F0520L-24V
Solenoid open frame 24VDC 0.59N 10mm 1.6W
Product name: F0520L-24V | SKU: 20052003
Solenoid open frame type voltage 24VDC force 0.59N stroke 10mm power 1.6W. The force can be significantly increased with limited energized time and with connection to higher supply voltage. The solenoids come with a return spring, and are available in various construction types such as open, cylindrical, self-holding latching bistable and holding magnet designs. All solenoids are available in mechanical pull L or push S designs and can be customized per request. Common customizations are mechanical as well as cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$44.10
≥ 5 pcs
$35.10
≥ 25 pcs
$27.80
≥ 50 pcs
$16.00
≥ 100 pcs

In stock

Power
1.6W
Voltage
24VDC
Profile height
16mm
Profile width
13mm
Length
20mm
Peak force
0.59N
Type
Pull
Weight
25g
SKU
20052003
Profile
Square
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Datasheet

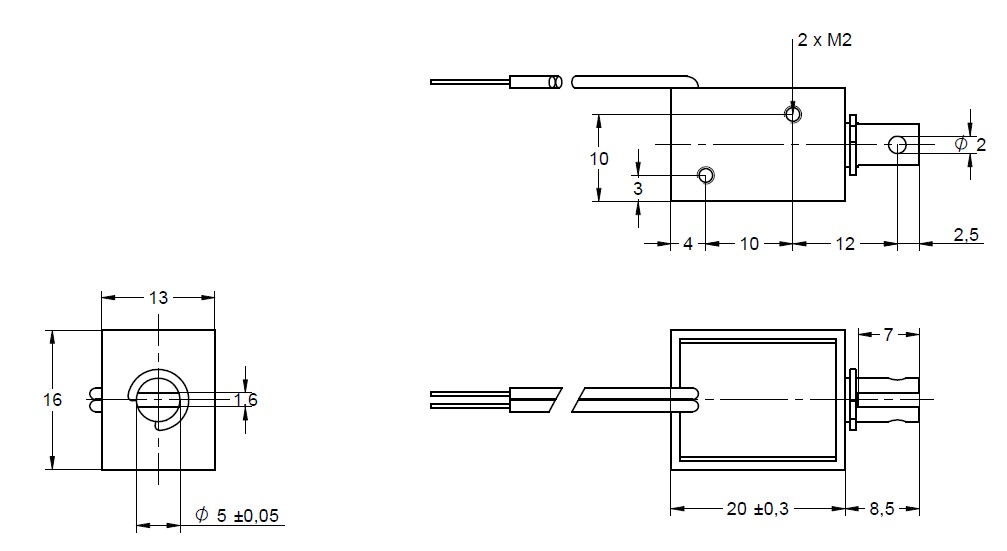

Drawing
Catalog
3D CAD (.stp)
