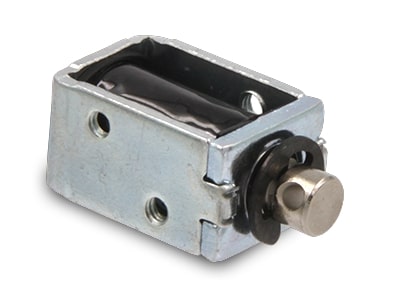

F0415L-24V
Solenoid open frame 24VDC 0.09N 0mm 0.8W
Product name: F0415L-24V | SKU: 20041504
Solenoid open frame type voltage 24VDC force 0.09N stroke 0mm power 0.8W. The force can be significantly increased with limited energized time and with connection to higher supply voltage. The solenoids come with a return spring, and are available in various construction types such as open, cylindrical, self-holding latching bistable and holding magnet designs. All solenoids are available in mechanical pull L or push S designs and can be customized per request. Common customizations are mechanical as well as cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€24.60
≥ 5 pcs
€18.70
≥ 25 pcs
€15.30
≥ 50 pcs
€8.50
≥ 100 pcs

In stock

Power
0.8W
Voltage
24VDC
Profile
Square
Profile height
10mm
Profile width
8mm
Length
15mm
Peak force
0.09N
Type
Pull
Weight
8g
SKU
20041504
Some of the possible customizations:
Plunger length
Plunger profile
Connectors
For any inquiries regarding customizations, please contact us at:
Datasheet

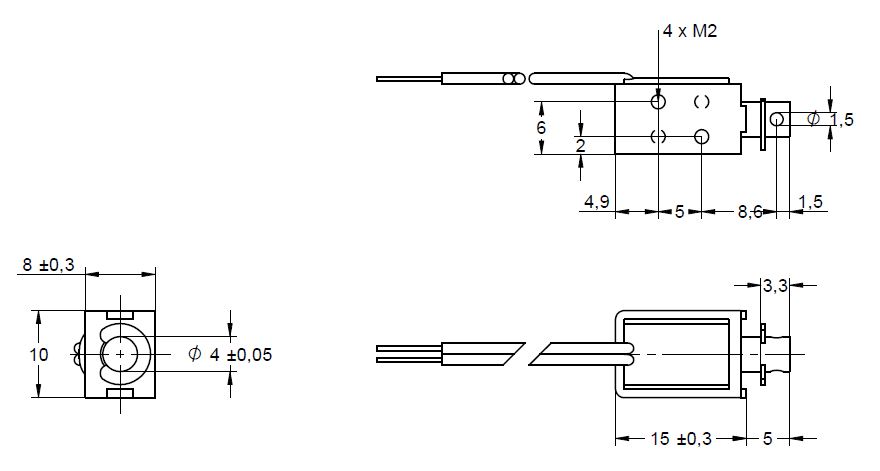

Drawing
Catalog
3D CAD (.stp)
