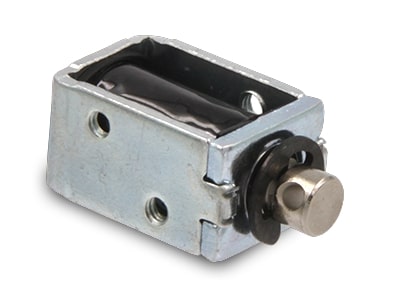

Solenoid open frame 12VDC 0.02lbf 0.12in 0.8W
Product name: F0415L-12V | SKU: 20041503
Solenoid open frame type voltage 12VDC force 0.02lbf stroke 0.12in power 0.8W. The force can be significantly increased with limited energized time and with connection to higher supply voltage. The solenoids come with a return spring, and are available in various construction types such as open, cylindrical, self-holding latching bistable and holding magnet designs. All solenoids are available in mechanical pull L or push S designs and can be customized per request. Common customizations are mechanical as well as cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$27.40
≥ 5 pcs
$20.80
≥ 25 pcs
$17.00
≥ 50 pcs
$9.50
≥ 100 pcs

In stock

Power
0.8W
Voltage
12VDC
Profile
Square
Length
0.59in
Profile height
0.39in
Profile width
0.31in
Peak force
0.02lbf
Type
Pull
Weight
0.28oz
SKU
20041503
Some of the possible customizations:
Plunger length
Plunger profile
Connectors
For any inquiries regarding customizations, please contact us at:
Note

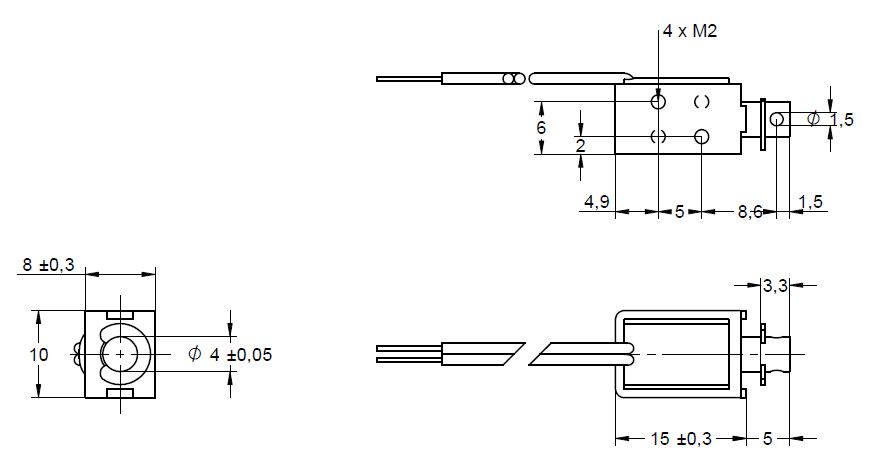

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
