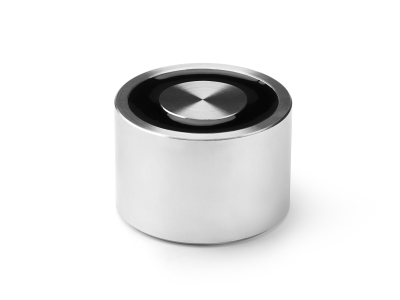

Holding solenoid 12VDC 55mm 10W
Product name: EM5537-12V | SKU: 20553709
Holding solenoid voltage 12VDC diameter 55mm power 10WThe holding force can be significantly increased with limited energized time and with connection to a higher supply voltage. All holding magnets can be customized per request Common customizations are mechanical as well as cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€156.30
≥ 5 pcs
€125.00
≥ 25 pcs
€104.20
≥ 50 pcs
€89.30
≥ 100 pcs

Available on backorder

Power
10W
Voltage
12VDC
Profile
Circular
Length
37mm
Diameter
55mm
Weight
550g
SKU
20553709
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Note

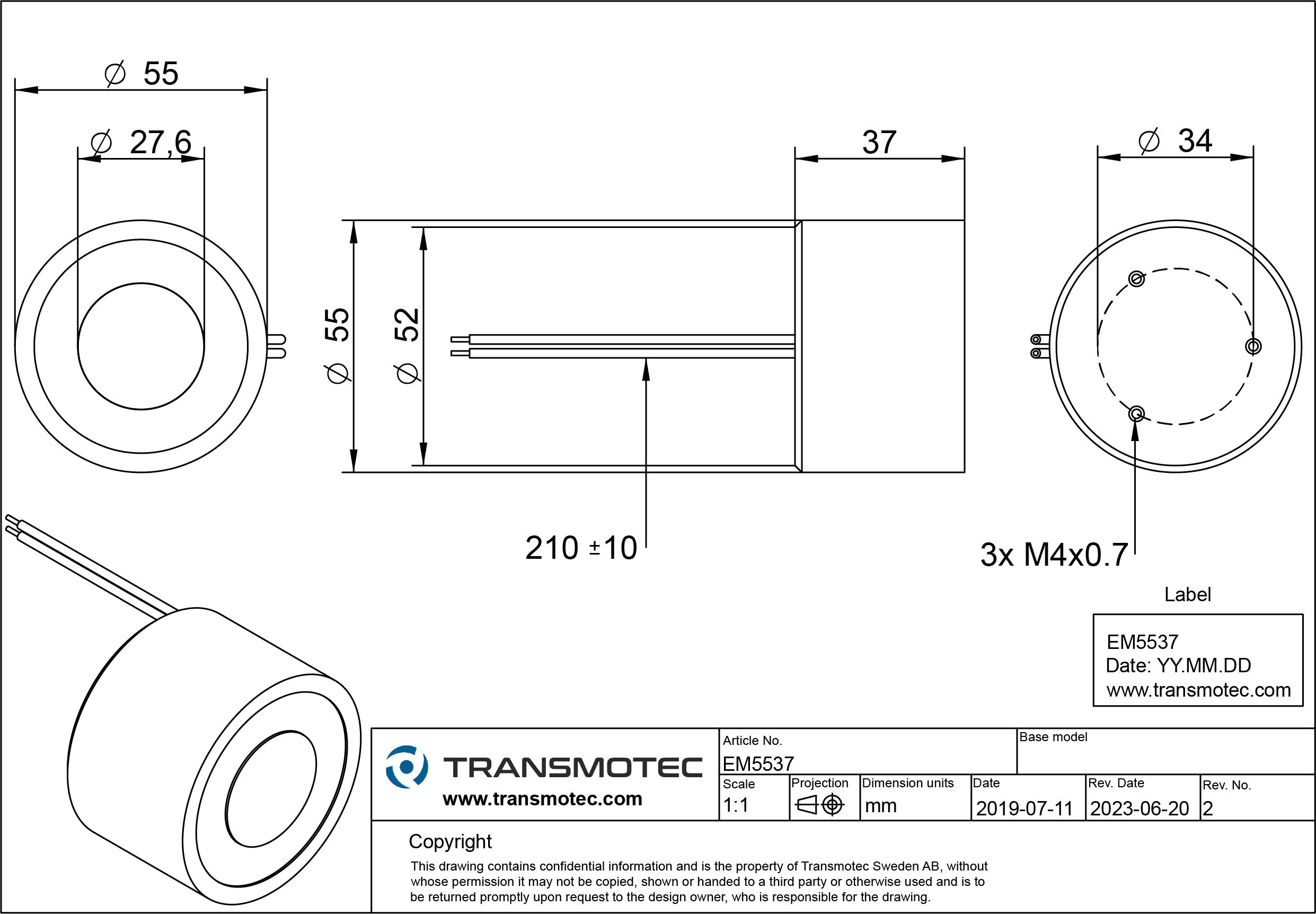

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
