EM2015-24V

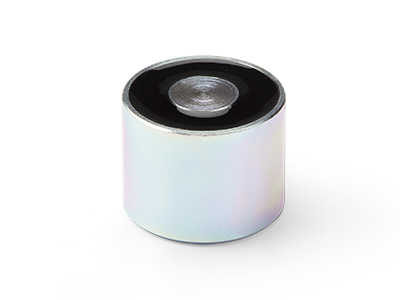

Holding solenoid 24V 20mm 2.5W
Product name: EM2015-24V | SKU: 20201510
Holding solenoid voltage 24V diameter 20mm power 2.5WThe holding force can be significantly increased with limited energized time and with connection to a higher supply voltage. All holding magnets can be customized per request Common customizations are mechanical as well as cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$75.00
≥ 5 pcs
$60.00
≥ 25 pcs
$50.00
≥ 50 pcs
$42.90
≥ 100 pcs

Available on backorder

Voltage
24V
Diameter
20mm
Power
2.5W
Profile
Circular
Length
15mm
Weight
25g
SKU
20201510
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Datasheet

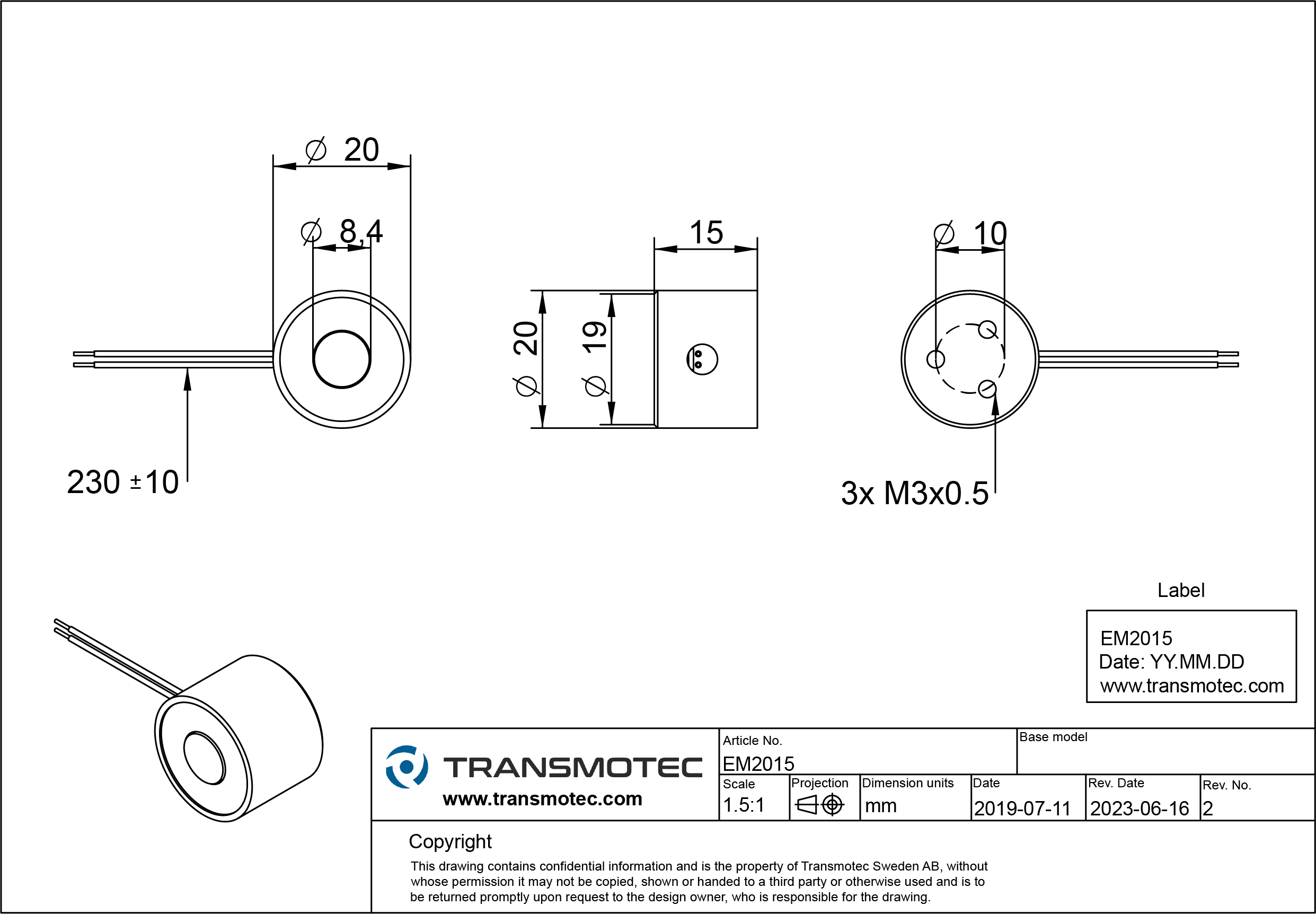

Drawing
Catalog
3D CAD (.stp)
