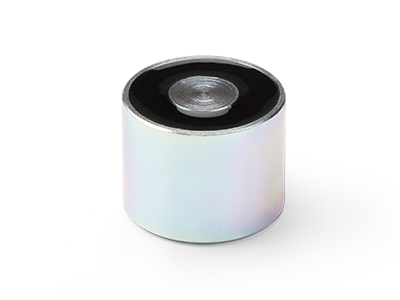

Holding solenoid 12VDC 20mm 2.5W
Product name: EM2015-12V | SKU: 20201509
Holding solenoid voltage 12VDC diameter 20mm power 2.5WThe holding force can be significantly increased with limited energized time and with connection to a higher supply voltage. All holding magnets can be customized per request Common customizations are mechanical as well as cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€67.00
≥ 5 pcs
€53.60
≥ 25 pcs
€44.60
≥ 50 pcs
€38.30
≥ 100 pcs

In stock

Power
2.5W
Voltage
12VDC
Profile
Circular
Length
15mm
Diameter
20mm
Weight
25g
SKU
20201509
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Note

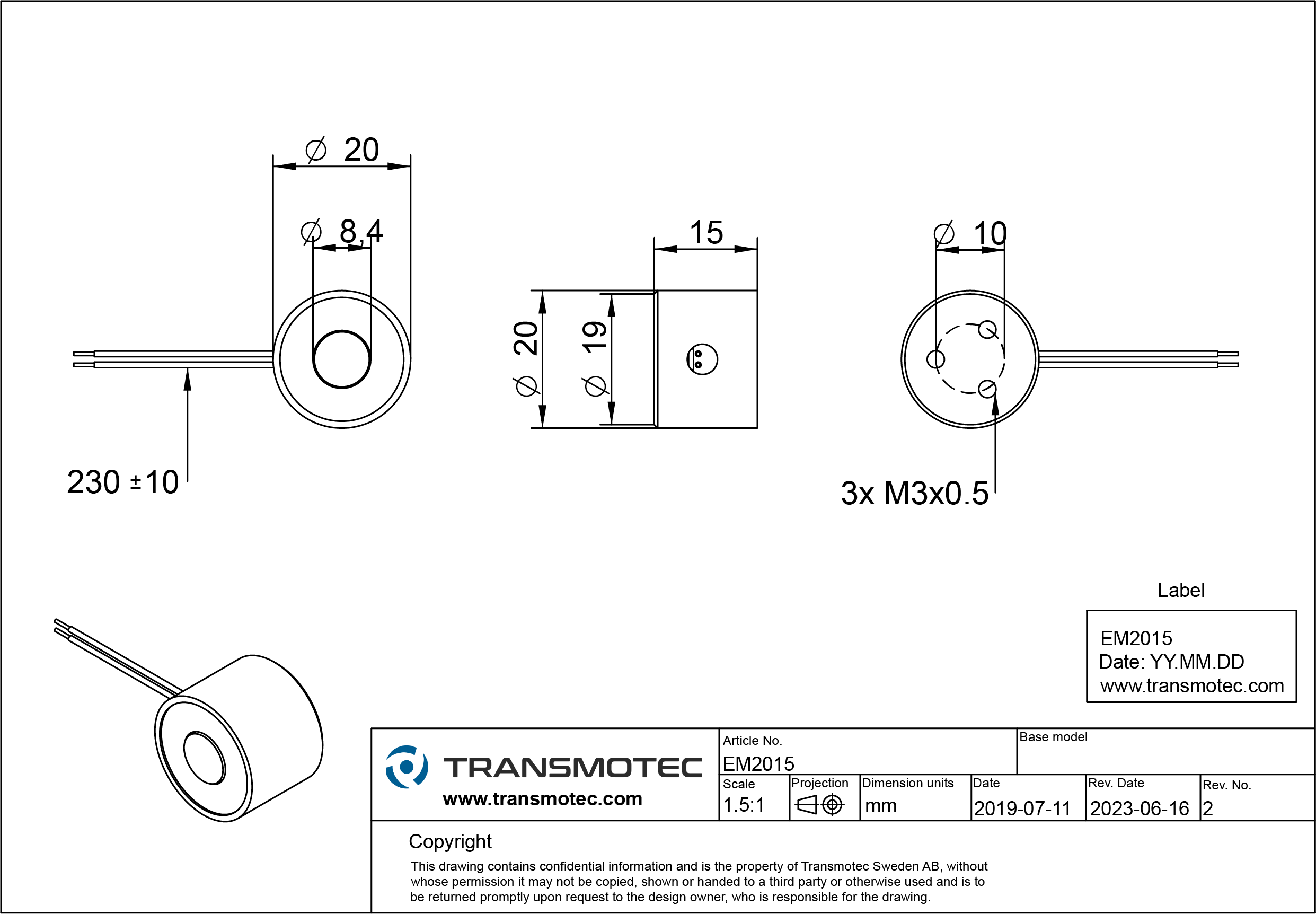

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
