DMA-12-10-A-305-LT-POT-IP65
Linear actuator 12VDC 1500N 18A
Product name: DMA-12-10-A-305-LT-POT-IP65 | SKU: 11014082
Linear actuator for direct current with voltage 12VDC force 1500N current 18A. These actuators include a range with supply voltages between 12-24V and can, depending on the type, be supplied with potentiometer and adjustable limit switches. Accessories for assembly are sold separately. All actuators can be customized per request. Common adjustments are stroke length, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$876.60
≥ 2 pcs
$777.10
≥ 5 pcs
$698.30
≥ 10 pcs
$471.10
≥ 25 pcs

In stock

Voltage
12VDC
Nominal current
18A
Feedback
Potentiometer
Maximum Force
1500N
Speed at maximum load
28mm/s
Stroke length
305mm
Weight
5.8kg
SKU
11014082
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Datasheet

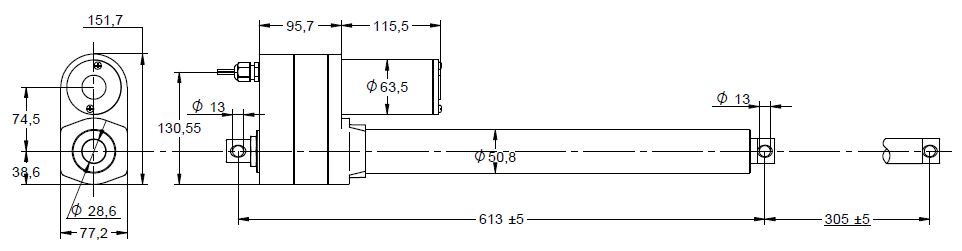

Drawing
Catalog
3D CAD (.stp)
