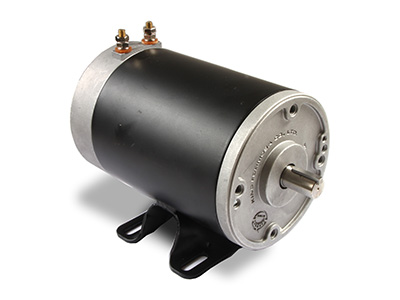

DC-motors 12VDC 43.3A 2020rpm 421W.
Product name: D123182-12 | SKU: 141188003
Brush-commutated DC motor, direct current motor voltage of 12VDC , current 43.3A, rated speed 2020rpm power 421W. These motors include a range of supply voltages between 2-36V and can, depending on the type, be supplied with or without gear and encoder. Existing gear types are planetary gears and spur gears. EMC filters can be obtained as capacitors or varistors. For some types, carbon brushes or metal brushes can also be selected. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$921.50
≥ 2 pcs
$819.00
≥ 5 pcs
$740.50
≥ 10 pcs
$506.50
≥ 25 pcs

In stock

Power
421W
Voltage
12VDC
Nominal speed
2020rpm
Nominal torque
1.4685lb-ft
Length
78.39in
Nominal current
43.3A
Diameter
4.86in
Weight
16.53lb
SKU
141188003
Some of the possible customizations:
Shaft length
Shaft profile
Operating temperature -40° -- +80°
Encoder
For any inquiries regarding customizations, please contact us at:
Note

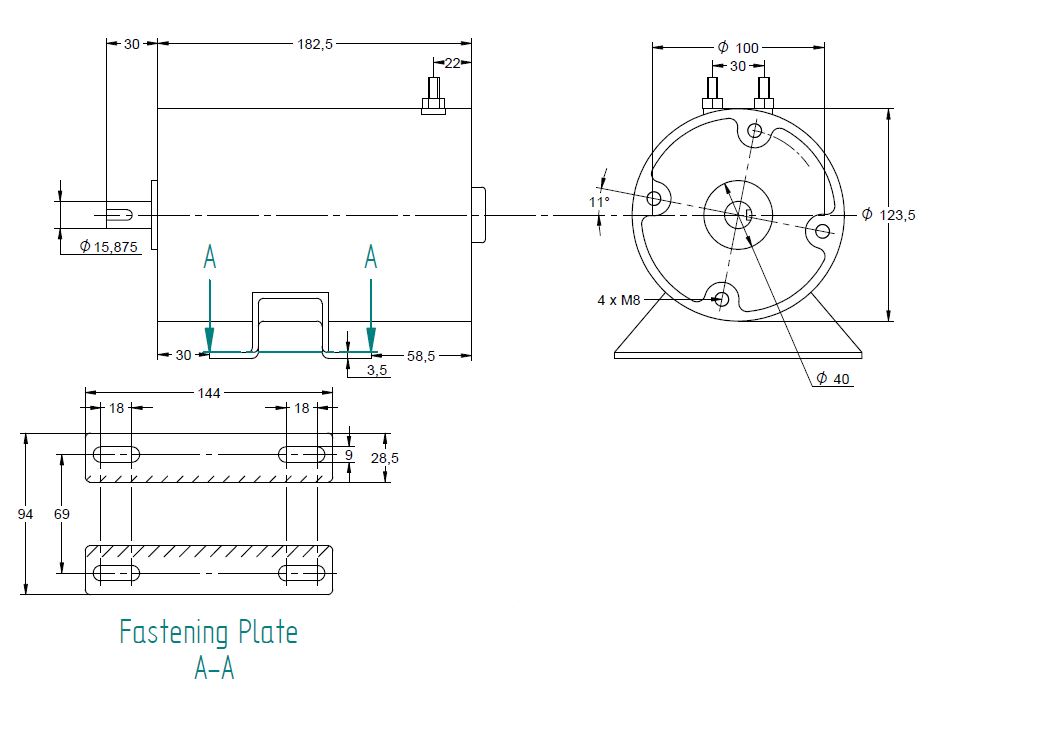

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
