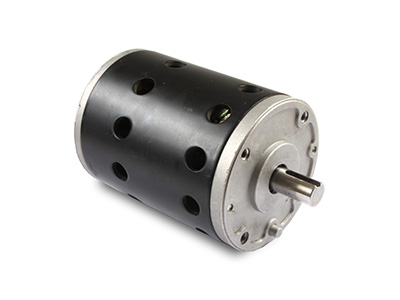

D109141-24
DC-motors 24VDC 17.1A 2300rpm 248W
Product name: D109141-24 | SKU: 141080002
Brush-commutated DC motor, direct current motor voltage of 24VDC, current 17.1A, rated speed 2300rpm power 248W. These motors include a range of supply voltages between 2-36V and can, depending on the type, be supplied with or without gear and encoder. Existing gear types are planetary gears and spur gears. EMC filters can be obtained as capacitors or varistors. For some types, carbon brushes or metal brushes can also be selected. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€491.80
≥ 2 pcs
€437.80
≥ 5 pcs
€394.20
≥ 10 pcs
€267.60
≥ 25 pcs

Available on backorder

Power
248W
Voltage
24VDC
Nominal speed
2300rpm
Nominal torque
1.03Nm
Nominal current
17.1A
Length
1030mm
Diameter
109.5mm
Weight
4.3kg
SKU
141080002
Some of the possible customizations:
Shaft length
Shaft profile
Operating temperature -40° -- +80°
Encoder
For any inquiries regarding customizations, please contact us at:
Datasheet

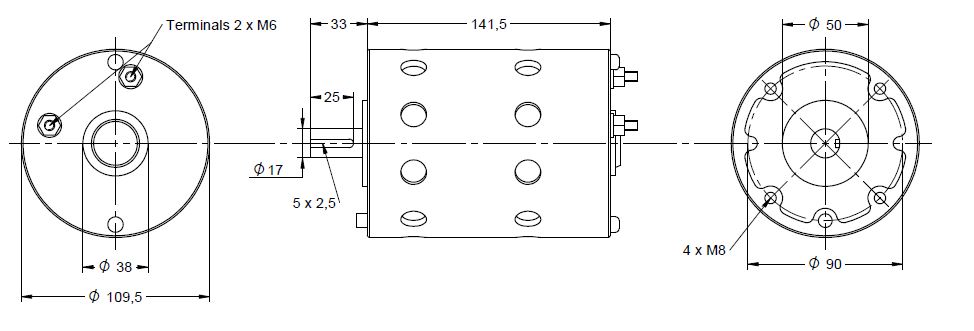

Drawing
Catalog
3D CAD (.stp)
