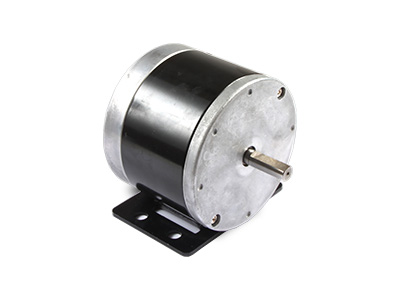

D10079-12
DC-motors 12VDC 15.5A 2600rpm 134W
Product name: D10079-12 | SKU: 149480005
Brush-commutated DC motor, direct current motor voltage of 12VDC, current 15.5A, rated speed 2600rpm power 134W. These motors include a range of supply voltages between 2-36V and can, depending on the type, be supplied with or without gear and encoder. Existing gear types are planetary gears and spur gears. EMC filters can be obtained as capacitors or varistors. For some types, carbon brushes or metal brushes can also be selected. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€402.30
≥ 2 pcs
€356.60
≥ 5 pcs
€319.90
≥ 10 pcs
€217.70
≥ 25 pcs

Available on backorder

Power
134W
Voltage
12VDC
Nominal speed
2600rpm
Nominal torque
490mNm
Nominal current
15.5A
Length
490mm
Diameter
100mm
Weight
2.85kg
SKU
149480005
Some of the possible customizations:
Shaft length
Shaft profile
Operating temperature -40° -- +80°
Encoder
For any inquiries regarding customizations, please contact us at:
Datasheet

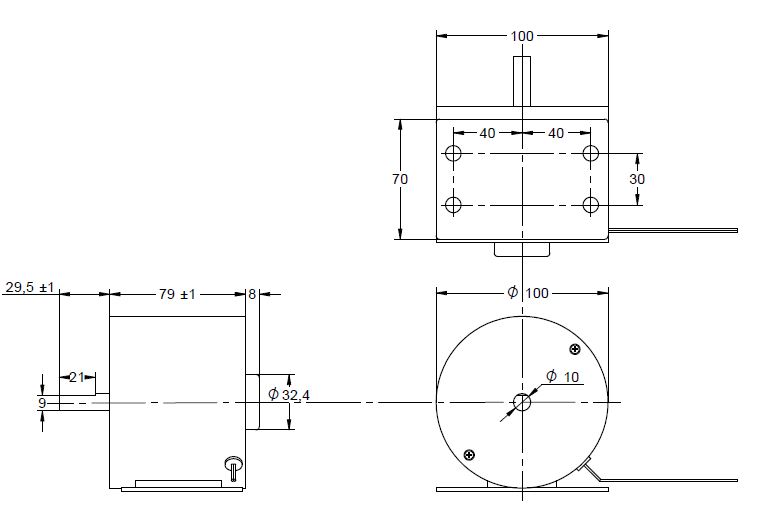

Drawing
Catalog
3D CAD (.stp)
