Brushless motor 12VDC 3.2A 4600rpm 26W
Product name: BT4259-12 | SKU: 15999174
Brushless DC motor, BLDC motor voltage 12VDC current 3.2A speed 4600rpm power 26W. The motors include a range of supply voltages between 12-48V and have hall elements intended for connection to external drive electronics. Mechanical structures with circular or square flange. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$113.00
≥ 5 pcs
$91.00
≥ 25 pcs
$76.50
≥ 50 pcs
$66.00
≥ 100 pcs

Available on backorder

Power
26W
Voltage
12VDC
Nominal speed
4600rpm
Nominal torque
7.65oz-in
Length
2.32in
Nominal current
3.2A
Diameter
1.65in
Weight
11.99oz
SKU
15999174
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Note

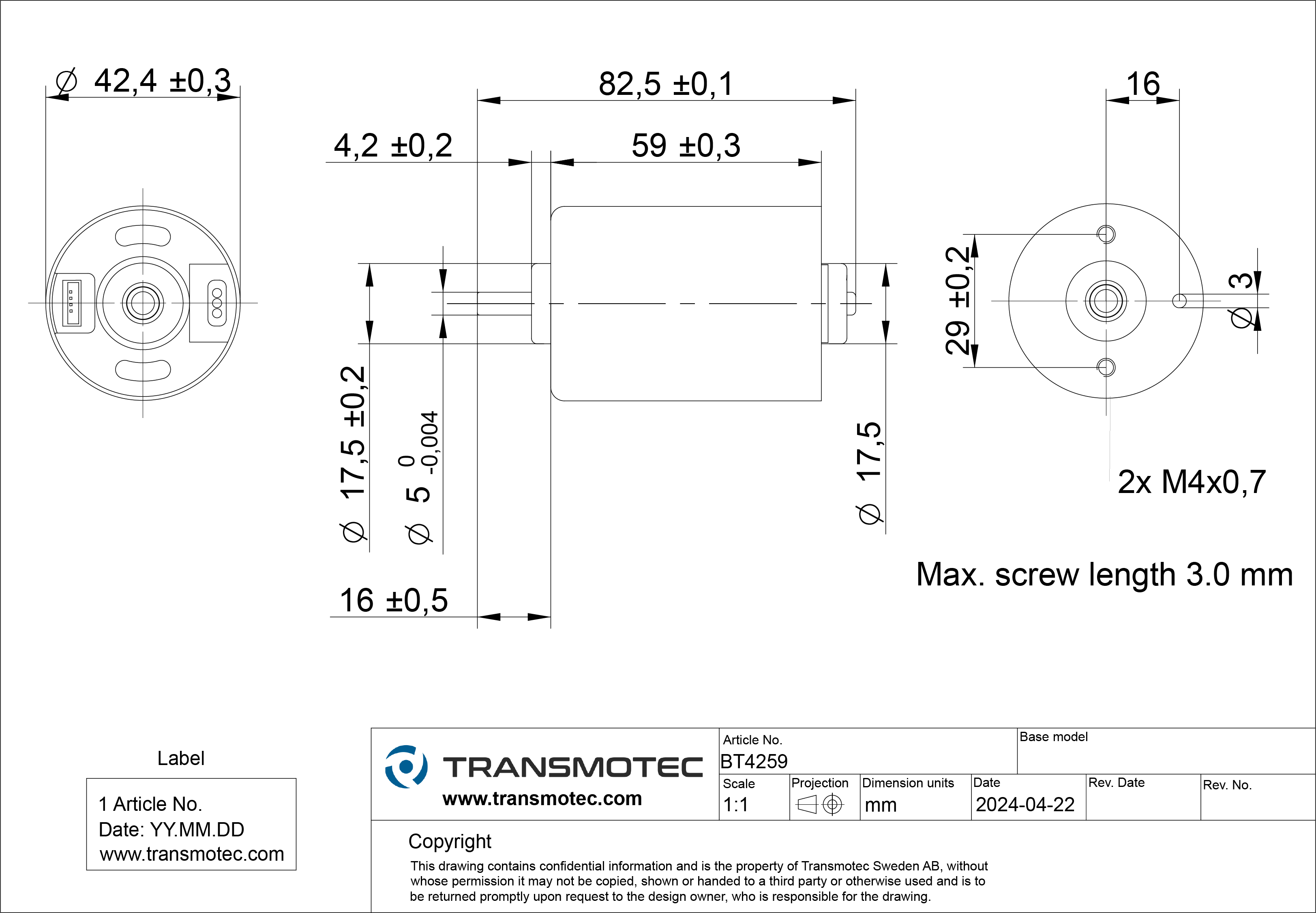

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
