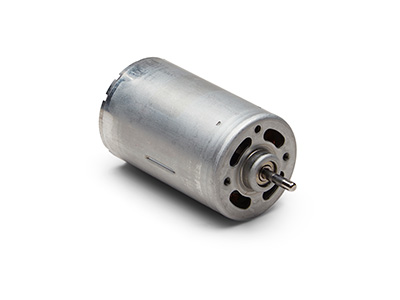

Brushless motor 24VDC 1A 5400rpm 18W
Product name: BT3657-24-I | SKU: 15999173
Brushless DC motor, BLDC motor voltage 24VDC current 1A speed 5400rpm power 18W. The motors include a range of supply voltages between 12-48V and have hall elements intended for connection to external drive electronics. Mechanical structures with circular or square flange. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€147.00
≥ 5 pcs
€118.00
≥ 25 pcs
€99.00
≥ 50 pcs
€85.00
≥ 100 pcs

Available on backorder

Power
18W
Voltage
24VDC
Nominal speed
5400rpm
Nominal torque
32mNm
Length
57mm
Nominal current
1A
Diameter
36mm
Weight
240g
SKU
15999173
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:

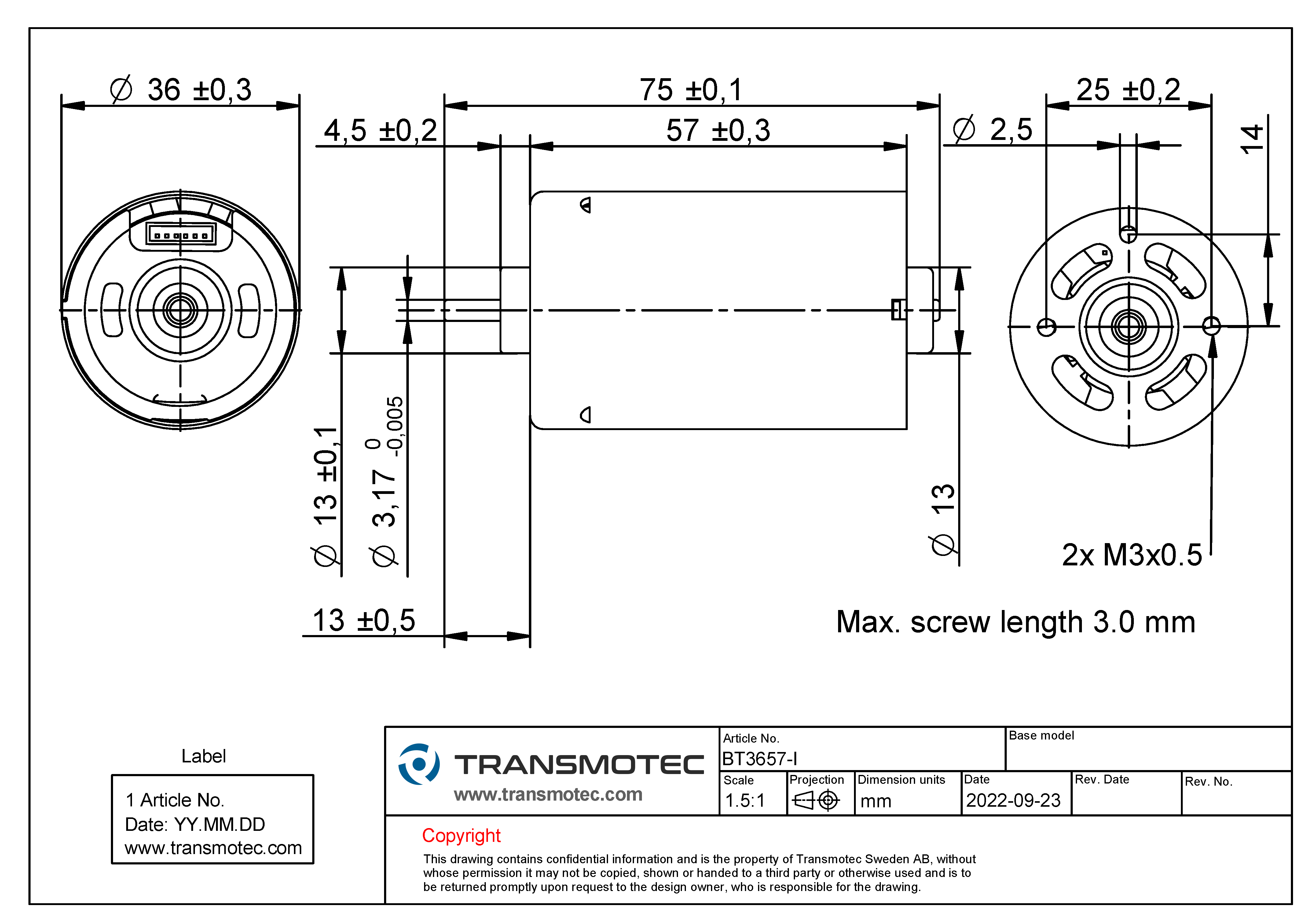

Note
Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
