Brushless motor 24VDC 0.3A 5100rpm 5W
Product name: BT2838-24-I | SKU: 15999157
Brushless DC motor, BLDC motor voltage 24VDC current 0.3A speed 5100rpm power 5W. The motors include a range of supply voltages between 12-48V and have hall elements intended for connection to external drive electronics. Mechanical structures with circular or square flange. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€110.50
≥ 5 pcs
€88.50
≥ 25 pcs
€74.00
≥ 50 pcs
€63.50
≥ 100 pcs

Available on backorder

Power
5W
Voltage
24VDC
Nominal speed
5100rpm
Nominal torque
9.4mNm
Length
38mm
Nominal current
0.3A
Diameter
28mm
Weight
70g
SKU
15999157
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Note

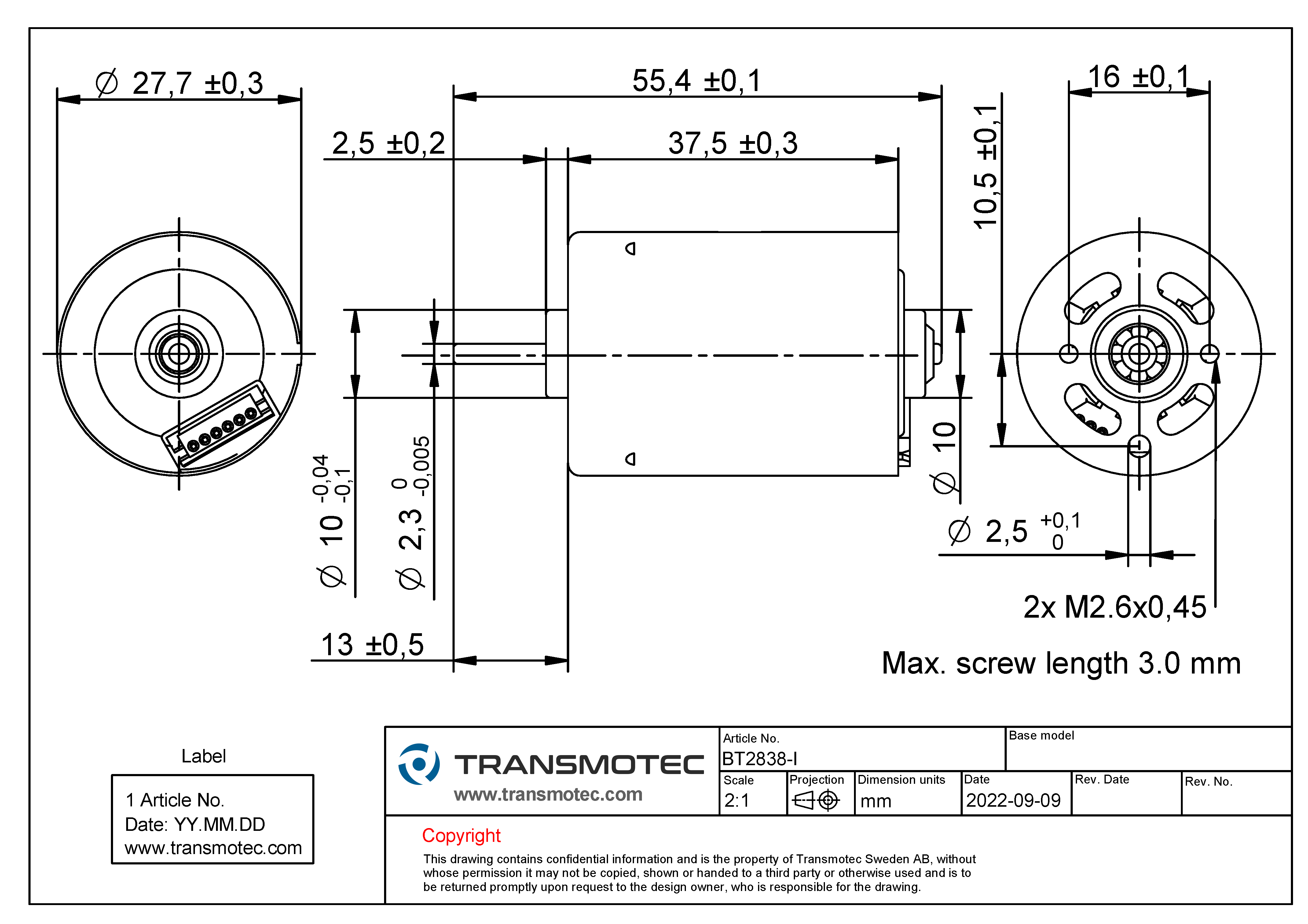

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
