Brushless motor 24VDC 0.2A 5100rpm 3.1W
Product name: BT2832-24-I | SKU: 15999152
Brushless DC motor, BLDC motor voltage 24VDC current 0.2A speed 5100rpm power 3.1W. The motors include a range of supply voltages between 12-48V and have hall elements intended for connection to external drive electronics. Mechanical structures with circular or square flange. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€110.50
≥ 5 pcs
€88.50
≥ 25 pcs
€74.00
≥ 50 pcs
€63.50
≥ 100 pcs

Available on backorder

Power
3.1W
Voltage
24VDC
Nominal speed
5100rpm
Nominal torque
5.8mNm
Length
32mm
Nominal current
0.2A
Diameter
28mm
Weight
71g
SKU
15999152
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Note

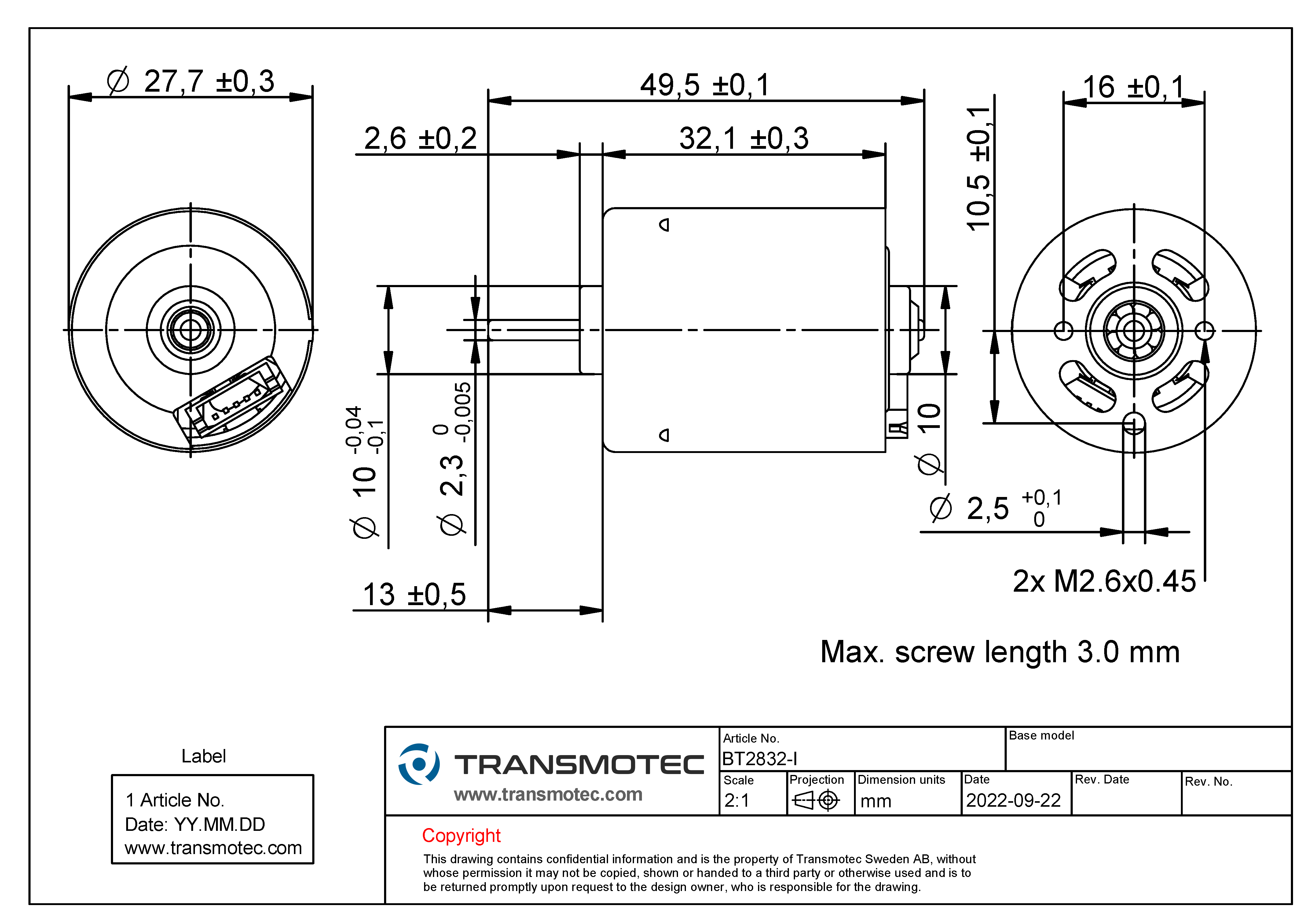

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
