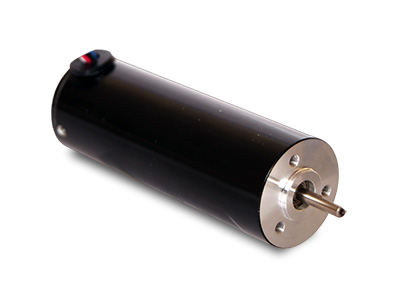

Brushless motor 12VDC 2.7A 3700rpm 20W
Product name: BR2877-12 | SKU: 13042066
Brushless DC motor, BLDC motor voltage 12VDC current 2.7A speed 3700rpm power 20W. The motors include a range of supply voltages between 12-48V and have hall elements intended for connection to external drive electronics. Mechanical structures with circular or square flange. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€276.60
≥ 2 pcs
€243.10
≥ 5 pcs
€176.20
≥ 10 pcs
€118.00
≥ 25 pcs

In stock

Power
20W
Voltage
12VDC
Nominal speed
3700rpm
Nominal torque
50mNm
Length
77mm
Profile height
0mm
Profile width
0mm
Nominal current
2.7A
Diameter
28mm
Weight
280g
SKU
13042066
Some of the possible customizations:
Shaft length
Shaft profile (D-shaft or circular)
Gearbox
Connectors
Encoder
For any inquiries regarding customizations, please contact us at:
Note

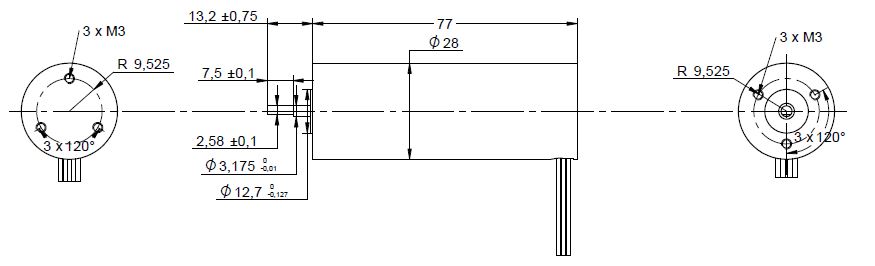

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
