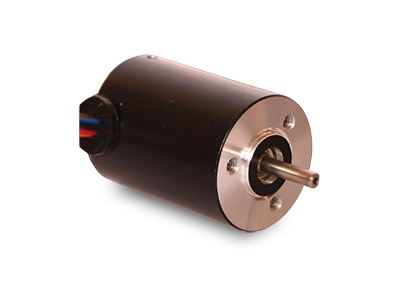

Brushless motor 12VDC 1.4A 10000rpm 15W
Product name: BR2838-12 | SKU: 13042064
Brushless DC motor, BLDC motor voltage 12VDC current 1.4A speed 10000rpm power 15W. The motors include a range of supply voltages between 12-48V and have hall elements intended for connection to external drive electronics. Mechanical structures with circular or square flange. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€199.10
≥ 5 pcs
€166.10
≥ 25 pcs
€120.10
≥ 50 pcs
€78.50
≥ 100 pcs

In stock

Power
15W
Voltage
12VDC
Nominal speed
10000rpm
Nominal torque
14mNm
Length
38.1mm
Profile height
0mm
Profile width
0mm
Nominal current
1.4A
Diameter
28mm
Weight
82g
SKU
13042064
Some of the possible customizations:
Shaft length
Shaft profile (D-shaft or circular)
Gearbox
Connectors
Encoder
For any inquiries regarding customizations, please contact us at:
Note

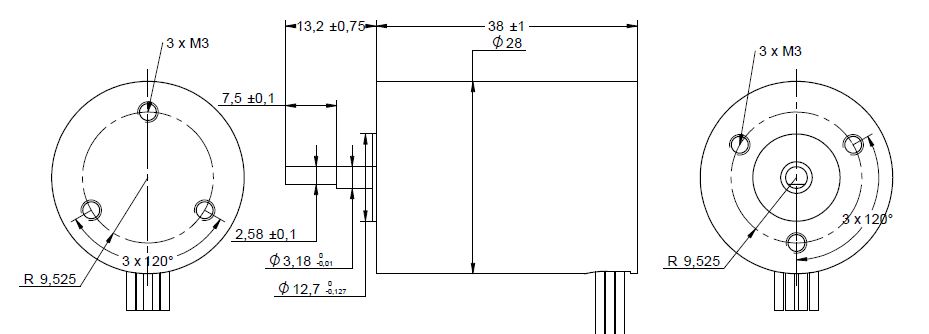

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
