BR2245-24

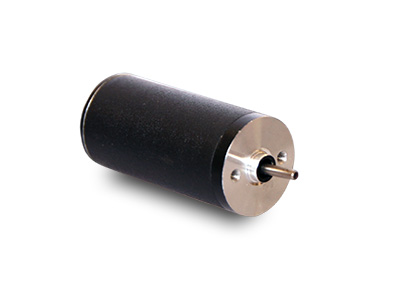

Brushless motor 24V 0.7A 4800rpm 3.8W
Product name: BR2245-24 | SKU: 13042059
Brushless DC motor, BLDC motor voltage 24V current 0.7A speed 4800rpm power 3.8W. The motors include a range of supply voltages between 12-48V and have hall elements intended for connection to external drive electronics. Mechanical structures with circular or square flange. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$190.00
≥ 5 pcs
$159.80
≥ 25 pcs
$115.90
≥ 50 pcs
$74.30
≥ 100 pcs

In stock

Voltage
24V
Diameter
22mm
Nominal speed
4800rpm
Nominal torque
9.6mNm
Power
3.8W
Length
45mm
Current at maximum load
0.7A
Profile height
0mm
Profile width
0mm
Weight
84g
SKU
13042059
Some of the possible customizations:
Shaft length
Shaft profile (D-shaft or circular)
Gearbox
Connectors
Encoder
For any inquiries regarding customizations, please contact us at:
Datasheet

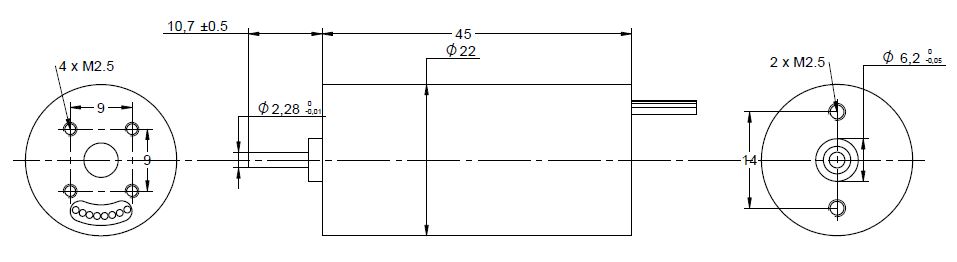

Drawing
Catalog
3D CAD (.stp)
