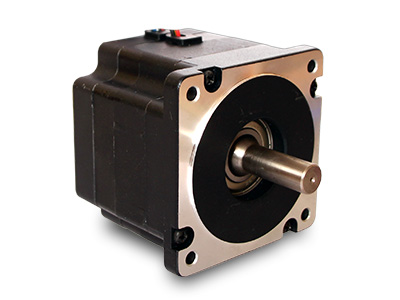

Brushless motor 48VDC 3.1A 3000rpm 110W
Product name: B8672-48 | SKU: 13042055
Brushless DC motor, BLDC motor voltage 48VDC current 3.1A speed 3000rpm power 110W. The motors include a range of supply voltages between 12-48V and have hall elements intended for connection to external drive electronics. Mechanical structures with circular or square flange. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€309.00
≥ 2 pcs
€275.60
≥ 5 pcs
€193.90
≥ 10 pcs
€132.70
≥ 25 pcs

In stock

Power
110W
Voltage
48VDC
Nominal speed
3000rpm
Nominal torque
350mNm
Length
72mm
Profile height
86mm
Profile width
86mm
Nominal current
3.1A
Diameter
0mm
Weight
1.6kg
SKU
13042055
Some of the possible customizations:
Shaft length
Shaft profile (D-shaft or circular)
Gearbox
Connectors
Encoder
For any inquiries regarding customizations, please contact us at:
Note

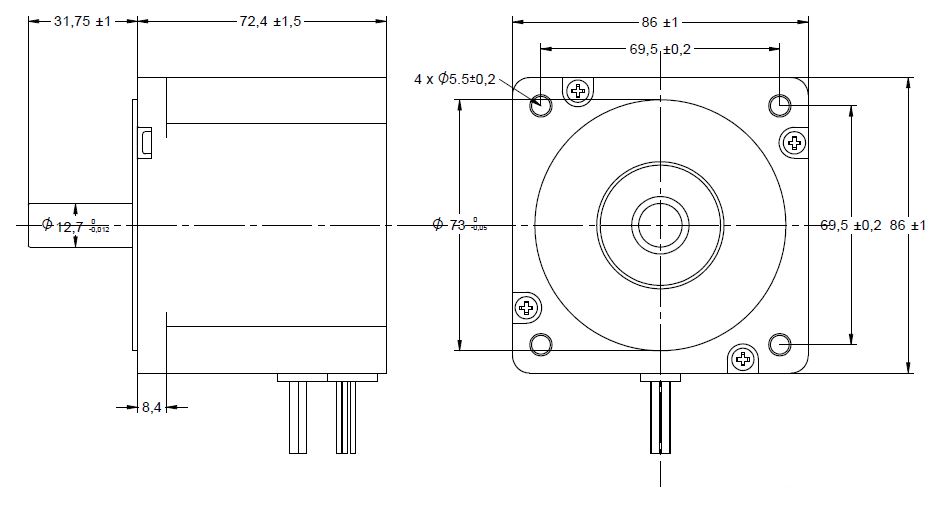

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
