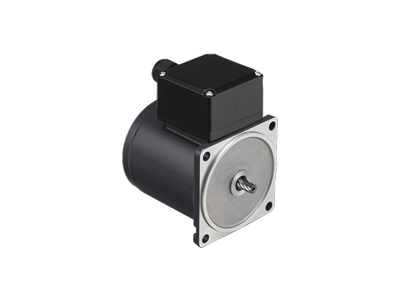

AI-025W-120-SB
AI-025W-120-SB
AC motor for voltage of 120VAC , current 0.45-0.5A, rated speed at 1600rpm and power 25W.
Product name: AI-025W-120-SB | SKU: 22100008
Induction AC-gear motors, alternating current motors voltage of 120VAC , current 0.45-0.5A, rated speed 1600rpm power 25W. Transmotec sell a broad range of geared AC motors in standard and customized configurations. These AC gear motors are designed for continuous operation and hundred percent duty cycle. Transmotec is the ideal supplier source specially to instrument and apparatus builders. We keep a high number of motors in stock for immediate delivery. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€108.00
≥ 5 pcs
€89.50
≥ 25 pcs
€77.00
≥ 50 pcs
€74.00
≥ 100 pcs

Available On Backorder

Power
25W
Voltage
120VAC
Frequency
60Hz
Phases
1
Nominal speed
1600rpm
Nominal torque
170 mNm
Type
Size
80x80mm
Profile
Square
Nominal current
0.45-0.5A
Weight
1.8kg
SKU
22100008
Note
Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
