987-5524F-C
DC-motors 24VDC 6.3A 9700rpm 112W
Product name: 987-5524F-C | SKU: 15987003
Brush-commutated DC motor, direct current motor voltage of 24VDC, current 6.3A, rated speed 9700rpm power 112W. These motors include a range of supply voltages between 2-36V and can, depending on the type, be supplied with or without gear and encoder. Existing gear types are planetary gears and spur gears. EMC filters can be obtained as capacitors or varistors. For some types, carbon brushes or metal brushes can also be selected. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€57.20
≥ 5 pcs
€49.10
≥ 25 pcs
€42.50
≥ 50 pcs
€29.40
≥ 100 pcs

In stock

Power
112W
Voltage
24VDC
Nominal speed
9700rpm
Nominal torque
101.9mNm
Nominal current
6.3A
Length
69mm
Diameter
52mm
Weight
660g
SKU
15987003
Some of the possible customizations:
Shaft length
Shaft profile
Operating temperature -40° -- +80°
Encoder
For any inquiries regarding customizations, please contact us at:
Datasheet

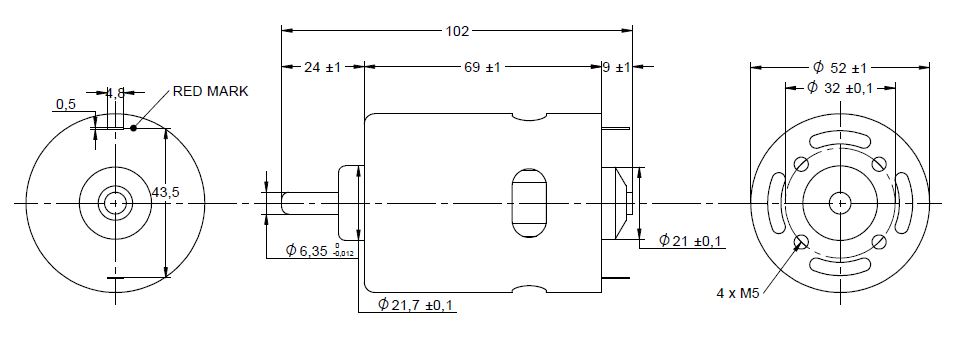

Drawing
Catalog
3D CAD (.stp)
