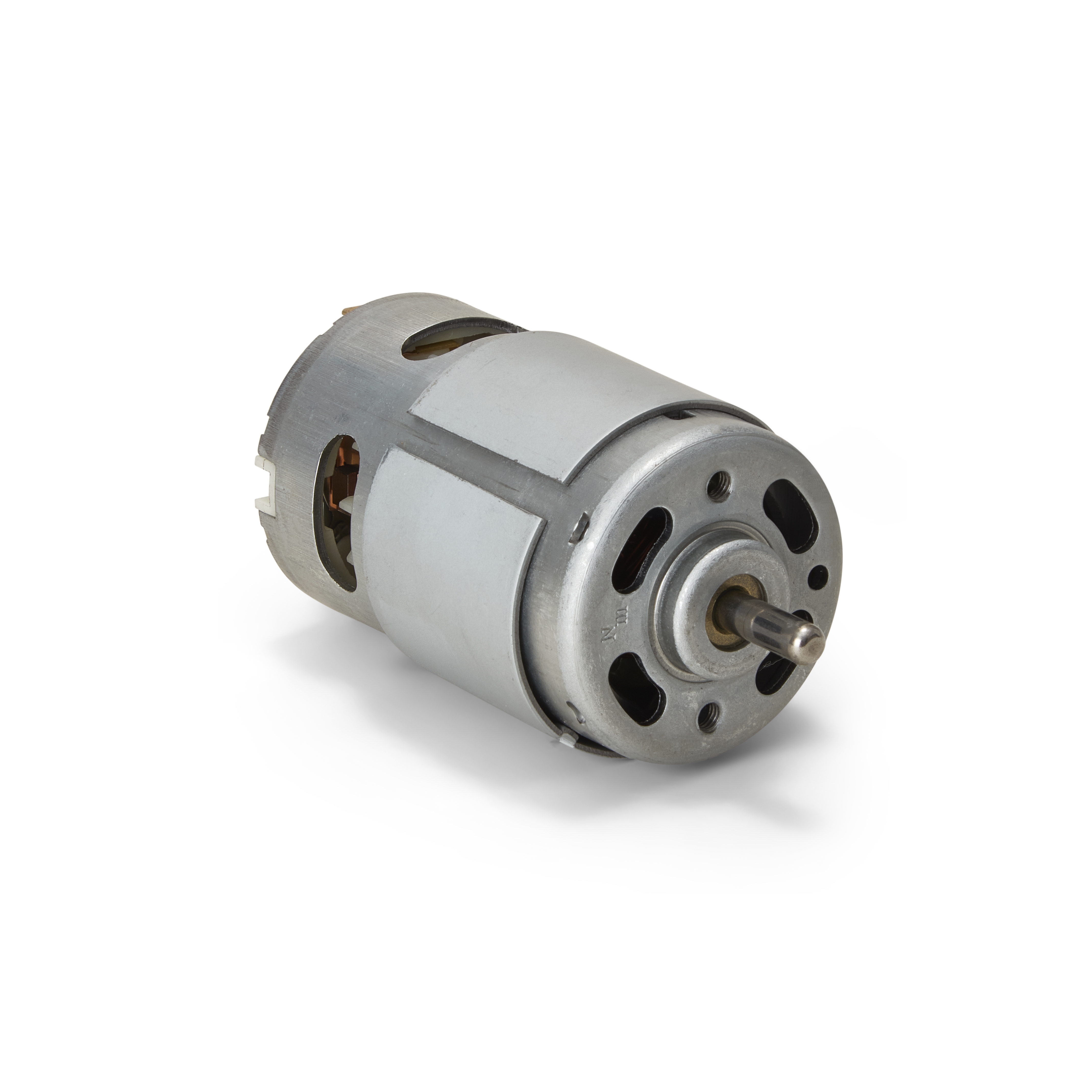

DC-motors 7.2VDC 20A 12000rpm 100W.
Product name: 775-9008F-CC | SKU: 15775001
Brush-commutated DC motor, direct current motor voltage of 7.2VDC , current 20A, rated speed 12000rpm power 100W. These motors include a range of supply voltages between 2-36V and can, depending on the type, be supplied with or without gear and encoder. Existing gear types are planetary gears and spur gears. EMC filters can be obtained as capacitors or varistors. For some types, carbon brushes or metal brushes can also be selected. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$61.30
≥ 5 pcs
$52.20
≥ 25 pcs
$46.00
≥ 50 pcs
$30.40
≥ 100 pcs

Available on backorder

Power
100W
Voltage
7.2VDC
Nominal speed
12000rpm
Nominal torque
11.33oz-in
Length
2.6in
Nominal current
20A
Diameter
1.77in
Weight
16.93oz
SKU
15775001
Some of the possible customizations:
Shaft length
Shaft profile
Operating temperature -40° -- +80°
Encoder
For any inquiries regarding customizations, please contact us at:
Note

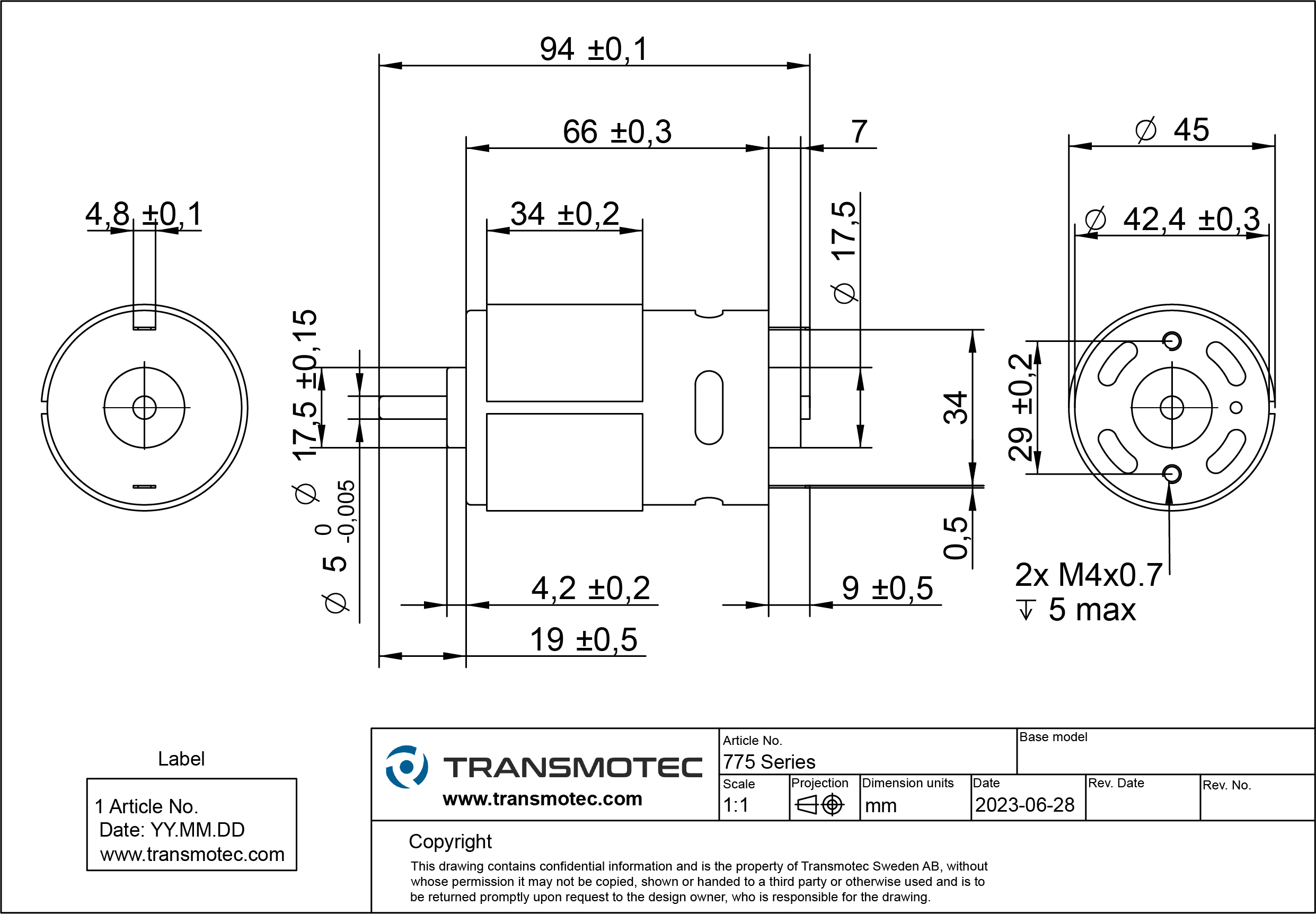

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
