DC-motors 18VDC 16A 19000rpm 200W.
Product name: 775-8013F-C-CC | SKU: 15775003
Brush-commutated DC motor, direct current motor voltage of 18VDC , current 16A, rated speed 19000rpm power 200W. These motors include a range of supply voltages between 2-36V and can, depending on the type, be supplied with or without gear and encoder. Existing gear types are planetary gears and spur gears. EMC filters can be obtained as capacitors or varistors. For some types, carbon brushes or metal brushes can also be selected. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$61.30
≥ 5 pcs
$52.20
≥ 25 pcs
$46.00
≥ 50 pcs
$30.40
≥ 100 pcs

In stock

Power
200W
Voltage
18VDC
Nominal speed
19000rpm
Nominal torque
14.16oz-in
Length
2.6in
Nominal current
16A
Diameter
1.77in
Weight
16.93oz
SKU
15775003
Some of the possible customizations:
Shaft length
Shaft profile
Operating temperature -40° -- +80°
Encoder
For any inquiries regarding customizations, please contact us at:
Note

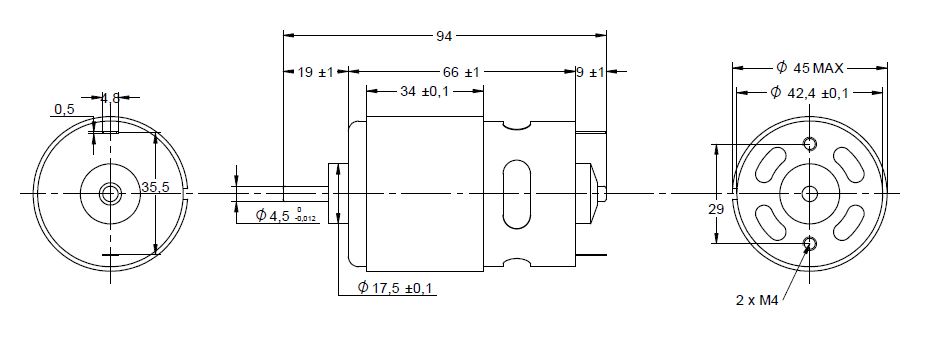

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
